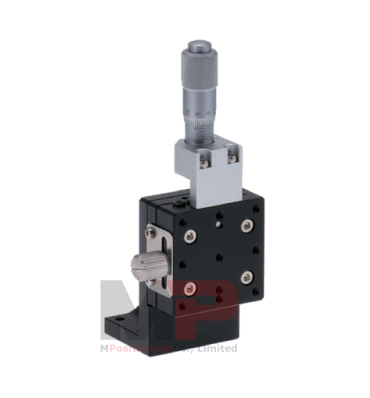

Precision Vertical Translation Stage T40Z-13C2 with ±6.5 mm of Travel

Item No.: T40Z-13C2
Key Features
- 40 mm x 40 mm Platform Size
- Lockable Design by a Steel Thumbscrew
- Available for XZ or XYZ Assembly
- Crossed-Roller Bearings for Accurate and Smooth Motion
- 2.0 kgf of Load Capacity and ±6.5 mm of Vertical Height Adjustment
Description Specifications Downloads Related Products Contact Us
Description

The Vertical Translation Stage T40Z-13C2 is assembled by a Single-Axis Linear Stage T40X-13C2 and 90 Degree Angle Bracket T40. The Vertical Stage is equipped with the Precision Crossed-Roller Bearing Slide Guides. It features 0.01 mm of resolution with the actuator of Micrometer Head, provides ±6. 5 mm of vertical height adjustment range and offers 2.0 kgf of maximum load capacity. The platform size is 40 mm x 40 mm with mounting surface in vertically.

This Vertical Stage can also be stacked an XZ or XYZ Positioning Stage with our regular Single-Axis or XY Linear Translation Stage (see reference related products below). The Manual Rotation Stage R40B-L can also be stacked on mounting surface of the Vertical Stage T40Z-13C2 for Multi-Axis Positioning Solutions.

Related Products

Here you will find some of related products, configurable systems and accessories.

Item#

Product Description

T40X-13L

±6.5 mm Travel Linear Translation Stage, Rightside-Mounted Micrometer

T40X-13C

±6.5 mm Travel Linear Translation Stage, Center-Mounted Micrometer

T40X-13R

±6.5 mm Travel Linear Translation Stage, Leftside-Mounted Micrometer

T40XY-13L

±6.5 mm Travel XY Linear Stage, Rightside-Mounted Micrometer

T40XY-13C

±6.5 mm Travel XY Linear Stage, Center-Mounted Micrometer

T40XY-13R

±6.5 mm Travel XY Linear Stage, Leftside-Mounted Micrometer

T40Z-13C2

±6.5 mm Travel Vertical Stage, Center-Mounted Micrometer, Locking Screw in Leftside of the stage

T40Z-13C3

±6.5 mm Travel Vertical Stage, Center-Mounted Micrometer, Locking Screw in Rightside of the stage

T40Z-13L2

±6.5 mm Travel Vertical Stage, Leftside-Mounted Micrometer

T40Z-13R2

±6.5 mm Travel Vertical Stage, Rightside-Mounted Micrometer

R40B-L

Manual Rotation Stage (Inlaid Copper Ring), Support Loading ups to 1 kg

Specifications
Moving Direction Z Axis
Travel Range ± 6.50 mm
Platform Size 40 mm x 40 mm
Drive Mechanism Micrometer Head with 0.50 mm of Pitch
Bearing Construction Crossed-Roller Bearings
Material, Finish Aluminium Alloy, Black Anodized
Minimum Readout 0.01 mm
Straightness ≤ 0.01 mm/13 mm
Max. Load Capacity 2.0 kgf
Weight 0.22 kg
