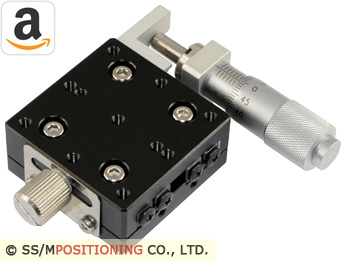

T40X-13R Linear Translation Stage with 13 mm of Travel and Rightside-Mounted Micrometer

Item No.: T40X-13R
- 0 - 13 mm travel with an 10 μm resolution
- Cross roller bearing for precise linear motion control
- Multipile positioners can be set up in XY, XZ or XYZ orientation
- Micrometer head drives in center-, left- or right-handed configuration
Description Specifications Downloads Accessories Contact Us
Description

The model T40X-13R, Linear Translation Stage, features crossed-roller bearing guide for precise linear motion and stable performance over the entire 13 mm travel range. Micrometer head drives in center-handed configuration with an 10 μm resolution, and supporting loads up to 3.0 kg. For more information about the left- or right-handed construction, please try to find the related products as below.

Otherwise, the modular design allows for XY, XZ or XYZ configuration as the application requirements you need. The Right Angle Bracket T40 allows the T40X series to be configured in XZ or XYZ orientation.

Specifications
Moving Direction X
Travel Range ± 6.5 mm
Platform Size 40 mm x 40 mm
Drive Mechanism Micrometer Head with 0.50 mm of Pitch, Rightside-Mounted
Bearing Construction Crossed-Roller Bearings
Material, Finish Aluminium Alloy, Black Anodized
Thickness 18 mm
Minimum Readout 0.01 mm
Moving Flatness ≤ 0.01 mm/13 mm
Flatness 0.02 mm
Max. Load Capacity 3.0 kgf
Weight 0.15 kg
