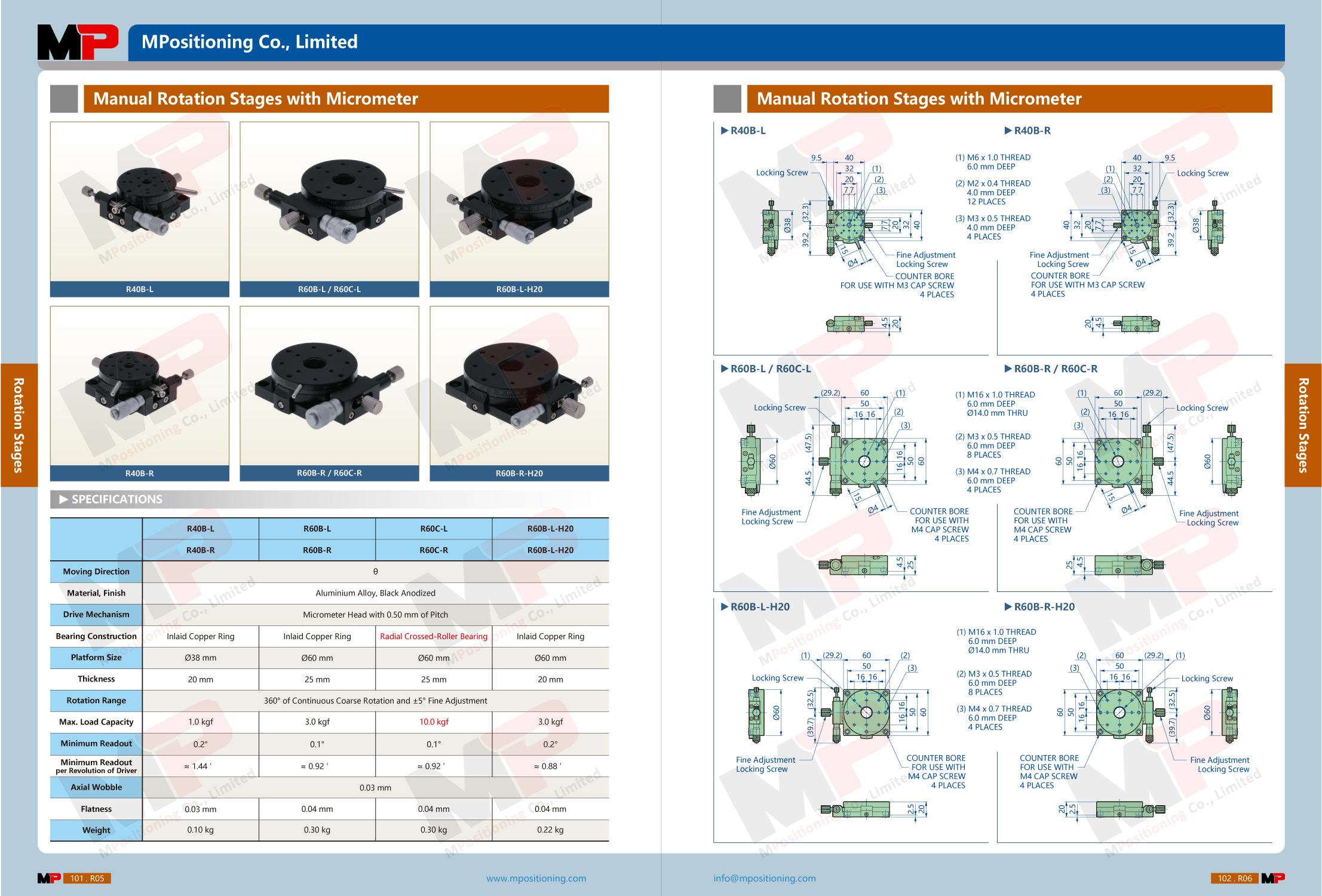

The Mini Manual Rotation Stage R40B-L combines easy-to-use manual rotation with precision micrometer adjustment. If the Fine Adjustment Locking Screw is unlocked, the stage can be smoothly and continuously rotated by hand through a full 360° of coarse rotation. When the Fine Adjustment Locking Screw is locked, the rotating platform is adjusted by the Micrometer Head with ±5° of fine adjustment.
The item number R40B-L is often used for left-handed operation and R40B-R for right-handed operation. The modular design allows to be set up in Multi-Axis Positioning Systems (X-Rotation, XY-Rotation or XYZ-Rotation configuration) with our Single-Axis Linear Stage, XY Linear Stage or XYZ Positioning Stage.
Related Products
Here you will find some of related products, configurable systems and accessories.
|
Item Number |
Product Description |
|
13 mm Travel, Linear Translation Stage, Rightside-Mounted Micrometer |
|
|
13 mm Travel, Linear Translation Stage, Center-Mounted Micrometer |
|
|
13 mm Travel, Linear Translation Stage, Leftside-Mounted Micrometer |
|
|
T40XY-13R |
13 mm Travel, XY Linear Stage, Rightside-Mounted Micrometer |
|
T40XY-13C |
13 mm Travel, XY Linear Stage, Center-Mounted Micrometer |
|
T40XY-13L |
13 mm Travel, XY Linear Stage, Leftside-Mounted Micrometer |
|
T40Z-10A |
10 mm Travel, Vertical Stage, Support Loading ups to 2.0 kg |
|
T40XYZ-13R10A |
XYZ Positioning Stage, 13 mm travel in X and Y and 10 mm Range in Z |
| Moving Direction | θ |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch |
| Bearing Construction | Inlaid Copper Ring |
| Platform Size | Ø38 mm |
| Thickness | 20 mm |
| Rotation Range | 360° of Continuous Coarse Rotation, ±5° of Fine Adjustment |
| Max. Load Capacity | 1.0 kgf |
| Minimum Readout | 0.2° |
| Minimum Readout per Revolution of Driver | ≈ 1.44' |
| Axial Wobble | 0.03 mm |
| Flatness | 0.03 mm |
| Weight | 0.10 kg |
