How to Build 4-Axis Positioning Solutions?

The Manual Positioning Stages from the professional manufacturer of MPositioning Co., Limited include Manual Linear Stages, Manual Rotation Stages, Vertical Stages and Manual Goniometric Stages. These Positioning Stages can be easily built a Multi-Axis Positioning Solutions (2-Axis, 3-Axis, 4-Axis or 6-Axis) in different types of the same size of platform.

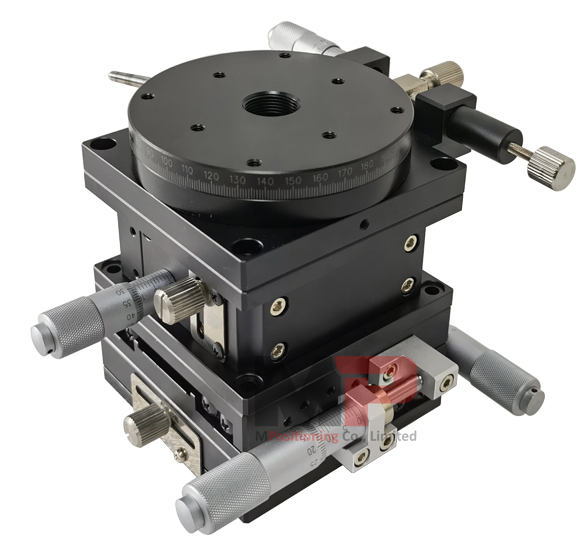

The picture showed is one of our 4-Axis Positioning Stage built by an XY Linear Stage T80XY-25R, a Vertical Stage T80Z-10B and a Manual Rotation Stage R80B-L. Normally, the same platform size of MPositioning’s Translation Stages can build a Multi-Axis Positioning Solution according to different applications.

We collected the following Multi-Axis Positioning Solutions for reference.

Multi-Axis
Positioning Solutions

Linear Stage

Vertical Stage

Rotation Stage

Goniometer Stage

Model

Q’TY

Model

Q’TY

Model

Q’TY

Model

Model

Q’TY

1. 40 x 40 mm Platform Size (Ø38 mm), 13 mm Range in X & Y, 10 mm in Z, 1 – 3 kgf of Load Capacity

XY Linear Stage

T40X-13R

2

-

-

-

-

-

-

-

2-Axis Positioning Stage

T40X-13R

1

-

-

R40B-L

1

-

-

-

3-Axis Positioning Stage

T40X-13R

2

-

-

R40B-L

1

-

-

-

XZ Positioning Stage

T40X-13R

1

T40Z-10A

1

-

-

-

-

-

XYZ Positioning Stage

T40X-13R

2

T40Z-10A

1

-

-

-

-

-

4-Axis Positioning Stage

T40X-13R

2

T40Z-10A

1

R40B-L

1

-

-

-

5-Axis Positioning Stage

T40X-13R

2

T40Z-10A

1

R40B-L

1

GM40X-40L

-

1

Dual-Axis Goniometer

-

-

-

-

-

GM40X-40L

GM40X-60L

1 ea

6-Axis Positioning Stage

T40X-13R

2

T40Z-10A

1

R40B-L

1

GM40X-40L

GM40X-60L

1 ea

2. 60 x 60 mm Platform Size (Ø60 mm), 13 or 25 mm Range in X & Y, 10 mm in Z, 3 – 6 kgf of Load Capacity

XY Linear Stage

T60X-25L

2

-

-

-

-

-

-

-

2-Axis Positioning Stage

T60X-25L

1

-

-

R60B-L

1

-

-

-

3-Axis Positioning Stage

T60X-25L

2

-

-

R60B-L

1

-

-

-

XZ Positioning Stage

T60X-25L

1

T60Z-10B

1

-

-

-

-

-

XYZ Positioning Stage

T60X-25L

2

T60Z-10B

1

-

-

-

-

-

4-Axis Positioning Stage

T60X-25L

2

T60Z-10B

1

R60B-L

1

-

-

-

5-Axis Positioning Stage

T60X-25L

2

T60Z-10B

1

R60B-L

1

GM60X-50L

-

1

Dual-Axis Goniometer

-

-

-

-

-

GM60X-50L

GM60X-75L

1 ea

6-Axis Positioning Stage

T60X-25L

2

T60Z-10B

1

R60B-L

1

GM60X-50L

GM60X-75L

1 ea

3. 80 x 80 mm Platform Size (Ø80 mm), 25 mm Range in X & Y, 10 mm in Z, 4 – 10 kgf of Load Capacity

XY Linear Stage

T80X-25R

2

-

-

-

-

-

-

-

2-Axis Positioning Stage

T80X-25R

1

-

-

R80B-L

1

-

-

-

3-Axis Positioning Stage

T80X-25R

2

-

-

R80B-L

1

-

-

-

XZ Positioning Stage

T80X-25R

1

T80Z-10B

1

-

-

-

-

-

XYZ Positioning Stage

T80X-25R

2

T80Z-10B

1

-

-

-

-

-

4-Axis Positioning Stage

T80X-25R

2

T80Z-10B

1

R80B-L

1

-

-

-

4. 90 x 90 mm Platform Size (Ø90 mm), 25 mm Range in X & Y, 10 mm in Z, 3 – 10 kgf of Load Capacity

XY Linear Stage

T90X-25R

2

-

-

-

-

-

-

-

2-Axis Positioning Stage

T90X-25R

1

-

-

R90B-L

1

-

-

-

3-Axis Positioning Stage

T90X-25R

2

-

-

R90B-L

1

-

-

-

XZ Positioning Stage

T90X-25R

1

T90Z-10B

1

-

-

-

-

-

XYZ Positioning Stage

T90X-25R

2

T90Z-10B

1

-

-

-

-

-

4-Axis Positioning Stage

T90X-25R

2

T90Z-10B

1

R90B-L

1

-

-

-

5. 100 x 100 mm Platform Size (Ø100 mm), 25 mm Range in XY, Ø50 of Clear Aperture, 6 kgf of Load Capacity

3-Axis Positioning Stage

T100XY-25LK

1

-

-

R100C-LK

1

-

-

-

6. 125 x 125 mm Platform Size (Ø125 mm), 50 mm Range in X & Y, 20 mm in Z, 5 - 15 kgf of Load Capacity

XY Linear Stage

T125X-50R

2

-

-

-

-

-

-

-

2-Axis Positioning Stage

T125X-50R

1

-

-

R125B-L

1

-

-

-

3-Axis Positioning Stage

T125X-50R

2

-

-

R125B-L

1

-

-

-

XZ Positioning Stage

T125X-50R

1

T125Z-20B

1

-

-

-

-

-

XYZ Positioning Stage

T125X-50R

2

T125Z-20B

1

-

-

-

-

-

4-Axis Positioning Stage

T125X-50R

2

T125Z-20B

1

R125B-L

1

-

-

-

7. 160 x 160 mm Platform Size (Ø158 mm), 50 mm Range in X & Y, 70 mm in Z, 8 - 40 kgf of Load Capacity

XY Linear Stage

T160XY-50RM

1

-

-

-

-

-

-

-

2-Axis Positioning Stage

T160X-50R

1

-

-

R160B-LK

1

-

-

-

3-Axis Positioning Stage

T160XY-50RM

1

-

-

R160B-LK

1

-

-

-

XZ Positioning Stage

T160X-50R

1

L01Z-70

1

-

-

-

-

-

XYZ Positioning Stage

T160XY-50RM

1

L01Z-70

1

-

-

-

-

-

4-Axis Positioning Stage

T160XY-50RM

1

L01Z-70

1

R160B-LK

1

-

-

-
