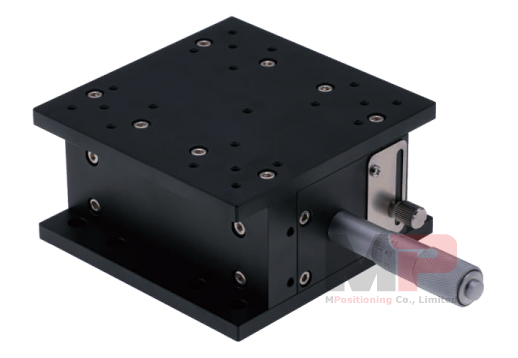

The Precision Vertical Stage T125Z-20B is equipped with the Double-Row (4 sets) of Precision Crossed-Roller Bearing Slide Guides. It features 0.01 mm of resolution with the actuator of Micrometer Head. This Vertical Postioner provides 20 mm of vertical height adjustment range and offers 15 kgf of loading. The larger-area platform size is 125 mm x 125 mm and surface in horizontally.
This Vertical Stage can also be stacked an XZ or XYZ Positioning Stage with our regular Single-Axis or XY Translation Stage. The Manual Rotation Stage R125A-L or R125B-L can also be stacked on mounting surface of the Vertical Stage T1250Z-20B for Multi-Axis Positioning Solutions.
Related Products
Here you will find some of related products, configurable systems and accessories.
Item Number |
Product Description |
Manual Rotation Stage (Standard Type), Support Loading ups to 3.0 kg |
|
Manual Rotation Stage (Inlaid Copper Ring), Support Loading ups to 5.0 kg |
|
25 mm Travel Linear Translation Stage, Rightside-Mounted Micrometer |
|
25 mm Travel Linear Translation Stage, Leftside-Mounted Micrometer |
|
25 mm Travel Linear Translation Stage, Center-Mounted Micrometer |
|
50 mm Travel Linear Translation Stage, Rightside-Mounted Micrometer |
|
50 mm Travel Linear Translation Stage, Leftside-Mounted Micrometer |
|
50 mm Travel Linear Translation Stage, Center-Mounted Micrometer |
|
10 mm Travel Vertical Translation Stage, Support Loading ups to 15.0 kg |
|
20 mm Travel Vertical Translation Stage, Support Loading ups to 15.0 kg |
|
XYZ Positioning Stage, 25 mm travel in X and Y, 10 mm Range in Z, Support Loading ups to 15.0 kg |
|
XYZ Positioning Stage, 25 mm travel in X and Y, 20 mm Range in Z, Support Loading ups to 15.0 kg |
|
XYZ Positioning Stage, 50 mm travel in X and Y, 20 mm Range in Z, Support Loading ups to 15.0 kg |
|
XYZ Positioning Stage, 50 mm travel in X and Y, 20 mm Range in Z, Support Loading ups to 15.0 kg |
Moving Direction | Z Axis |
Travel Range | 20 mm |
Drive Mechanism | Micrometer Head with 0.50 mm of Pitch |
Platform Size | 125 mm x 125 mm |
Bearing Construction | Crossed-Roller Bearings (Double-Row, 4 sets) |
Material, Finish | Aluminium Alloy, Black Anodized |
Height | 66 ~ 86 mm |
Minimum Readout | 0.01 mm |
Flatness | 0.10 mm |
Max. Load Capacity | 15.0 kgf |
Weight | 2.0 kg |
