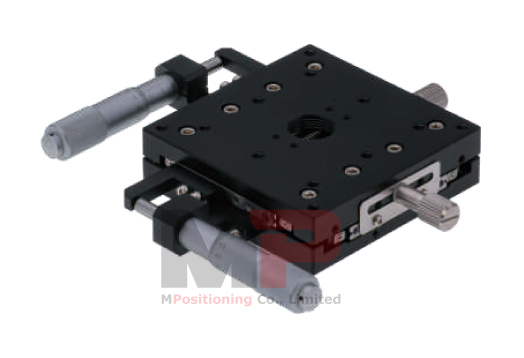

The Precision Manual XY Translation Stage T80XY-25LB is one of our Ultra-Thin XY-Axis Stage with only 22 mm of thickness for the applications in a limited space. It is equipped with the Crossed-Roller Bearing Slide Guides. The 80 mm x 80 mm mounting platform supports up to 4.0 kg with a smooth XY-Axis adjustment range of ±12.5 mm. The actuator of Micrometer Head drives in leftside position of the Single-Axis Stage.
Specifications
|
Part Number |
||||||
|
Enjoy Shipping on Amazon |
- |
- |
- |
|||
|
Moving Direction |
X & Y |
|||||
|
Travel Range |
±12.5 mm |
|||||
|
Platform Size |
80 mm x 80 mm |
|||||
|
Drive Mechanism |
Micrometer Head with 0.50 mm of Pitch |
|||||
|
Bearing Construction |
Crossed-Roller Bearings |
|||||
|
Material, Finish |
Aluminium Alloy, Black Anodized |
|||||
|
Thickness |
40 mm |
22 mm |
||||
|
Minimum Readout |
0.01 mm |
|||||
|
Moving Flatness |
≤ 0.02 mm/25 mm |
|||||
|
Flatness |
0.06 mm |
|||||
|
Max. Load Capacity |
10.0 kgf |
4.0 kgf |
||||
|
Weight |
1.00 kg |
0.70 kg |
||||
Related Products
Here, you will find some of related products, configurable systems and accessories.
|
Item Number |
Product Description |
|
10 mm Travel Vertical Stage, Mounting Surface in Horizontally, Supports up to 9 kgf |
|
|
±12.5 mm Travel Vertical Stage, Mounting Surface in Vertically, Supports up to 4 kgf |
|
|
±12.5 mm Travel Single-Axis Translation Stage, Center-Mounted Micrometer, Supports up to 10 kgf |
|
|
±12.5 mm Travel Single-Axis Translation Stage, Leftside-Mounted Micrometer, Supports up to 10 kgf |
|
|
±12.5 mm Travel Single-Axis Translation Stage, Rightside-Mounted Micrometer, Supports up to 10 kgf |
|
|
XYZ Translation Stage, ±12.5 mm Range in X & Y Axes, 10 mm in Z, Supports up to 9 kgf |
|
|
Manual Rotation Stage (Inlaid Copper Ring), Supports up to 4 kgf, Ø80 mm of Platform Size |
| Moving Direction | X & Y |
| Travel Range | ± 12.5 mm |
| Platform Size | 80 mm x 80 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch, Leftside-Mounted |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Thickness | 22 mm |
| Minimum Readout | 0.01 mm |
| Moving Flatness | ≤ 0.02 mm/25 mm |
| Flatness | 0.06 mm |
| Max. Load Capacity | 4.0 kgf |
| Weight | 0.70 kg |
