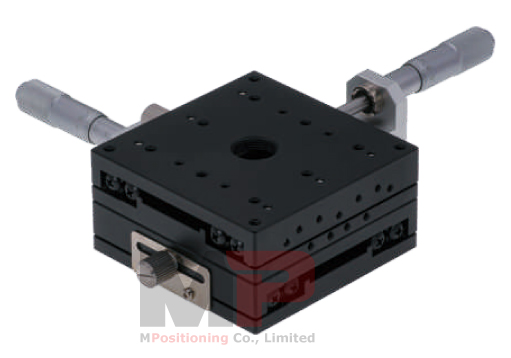

25 mm Travel Precision XY Translation Stage T80XY-25C

Item No.: T80XY-25C
- 80 x 80 mm Platform Size with 40 mm of Thickness
- Lockable Design by a Steel Thumbscrew
- Available for XYZ or 4-Axis Positioning Stage
- Crossed-Roller Bearings for Accurate & Smooth Motion
- 10 kgf of Loading and ±12.5 mm of XY-Axis Adjustment
Description Specifications Downloads Contact Us
Description

The Precision Manual XY Translation Stage T80XY-25C is stacked by 2 units of Single Axis Translation Stage T80X-25C and features Crossed-Roller Bearing Slide Guides. The 80 mm x 80 mm mounting platform supports up to 10.0 kg with a smooth XY-Axis adjustment range of ±12.5 mm. The actuator of Micrometer Head drives in center position of the Single-Axis Stage.

The modular design allows for Multi-Axis Positioning Stage with our Vertical Stage and Manual Rotation Stage. The optional Z direction is one of our Vertical Stage T80Z-10B offers a horizontal mounting platform with 10 mm of height adjustment range, OR T80Z-25C2 offers a vertical mounting platform with ±12.5 mm of height adjustment range. The Rotation Stage R80B-L can be stacked on mounting platform of the XY Translation for Multi-Axis Positioning Solutions.

Specifications

Part Number

T80XY-25C

T80XY-25L

T80XY-25R

T80XY-25CB

T80XY-25LB

T80XY-25RB

Enjoy Shipping on Amazon

Buy Now

Buy Now

Buy Now

-

-

-

Moving Direction

X & Y

Travel Range

±12.5 mm

Platform Size

80 mm x 80 mm

Drive Mechanism

Micrometer Head with 0.50 mm of Pitch

Bearing Construction

Crossed-Roller Bearings

Material, Finish

Aluminium Alloy, Black Anodized

Thickness

40 mm

22 mm

Minimum Readout

0.01 mm

Moving Flatness

≤ 0.02 mm/25 mm

Flatness

0.06 mm

Max. Load Capacity

10.0 kgf

4.0 kgf

Weight

1.00 kg

0.70 kg

Related Products

Here, you will find some of related products, configurable systems and accessories.

Item Number

Product Description

T80Z-10B

10 mm Travel Vertical Stage, Mounting Surface in Horizontally, Supports up to 9 kgf

T80Z-25C2

±12.5 mm Travel Vertical Stage, Mounting Surface in Vertically, Supports up to 4 kgf

T80X-25C

±12.5 mm Travel Single-Axis Translation Stage, Center-Mounted Micrometer, Supports up to 10 kgf

T80X-25L

±12.5 mm Travel Single-Axis Translation Stage, Leftside-Mounted Micrometer, Supports up to 10 kgf

T80X-25R

±12.5 mm Travel Single-Axis Translation Stage, Rightside-Mounted Micrometer, Supports up to 10 kgf

T80XYZ-25R10B

XYZ Translation Stage, ±12.5 mm Range in X & Y Axes, 10 mm in Z, Supports up to 9 kgf

R80B-L

Manual Rotation Stage (Inlaid Copper Ring), Supports up to 4 kgf, Ø80 mm of Platform Size

Specifications
Moving Direction X & Y
Travel Range ± 12.5 mm
Platform Size 80 mm x 80 mm
Drive Mechanism Micrometer Head with 0.50 mm of Pitch, Center-Mounted
Bearing Construction Crossed-Roller Bearings
Material, Finish Aluminium Alloy, Black Anodized
Thickness 40 mm
Minimum Readout 0.01 mm
Moving Flatness ≤ 0.02 mm/25 mm
Flatness 0.06 mm
Max. Load Capacity 10.0 kgf
Weight 1.0 kg
