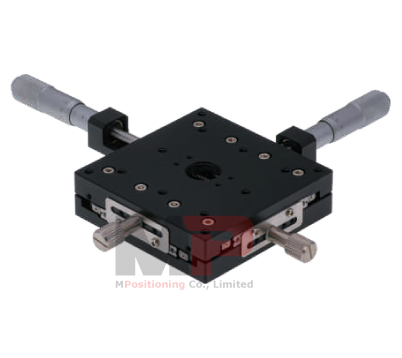

The Precision Manual XY Translation Stage T80XY-25CB is one of our Ultra-Thin XY-Axis Stage with only 22 mm of thickness for the applications in a limited space. It is equipped with the Crossed-Roller Bearing Slide Guides. The 80 mm x 80 mm mounting platform supports up to 4.0 kg with a smooth XY-Axis adjustment range of ±12.5 mm. The actuator of Micrometer Head drives in center position of the Single-Axis Stage.
Specifications
Part Number |
||||||
Enjoy Shipping on Amazon |
- |
- |
- |
|||
Moving Direction |
X & Y |
|||||
Travel Range |
±12.5 mm |
|||||
Platform Size |
80 mm x 80 mm |
|||||
Drive Mechanism |
Micrometer Head with 0.50 mm of Pitch |
|||||
Bearing Construction |
Crossed-Roller Bearings |
|||||
Material, Finish |
Aluminium Alloy, Black Anodized |
|||||
Thickness |
40 mm |
22 mm |
||||
Minimum Readout |
0.01 mm |
|||||
Moving Flatness |
≤ 0.02 mm/25 mm |
|||||
Flatness |
0.06 mm |
|||||
Max. Load Capacity |
10.0 kgf |
4.0 kgf |
||||
Weight |
1.00 kg |
0.70 kg |
