The XYZ Axes Translation Stage T125XYZ-25RM20B is stacked by an XY Linear Stage T125XY-25RM and a Vertical Stage T125Z-20B feature Crossed-Roller Bearings for the smooth and accurate adjustment range. The Large-Area 125 mm x 125 mm mounting platform supports up to 15.0 kg with the ±12.5 mm of travel in XY-Axis and 20 mm in Z-Axis. This XYZ table comes with three Micrometers with 0.50 mm of pitch and 0.01mm of resolution.
The modular design allows for Multi-Axis Positioning Solutions when the Manual Rotation Stage R125A-L or R125B-L mounts on top platform of the XYZ Stage.
Please contact us by email if you need the .STEP file of the model.

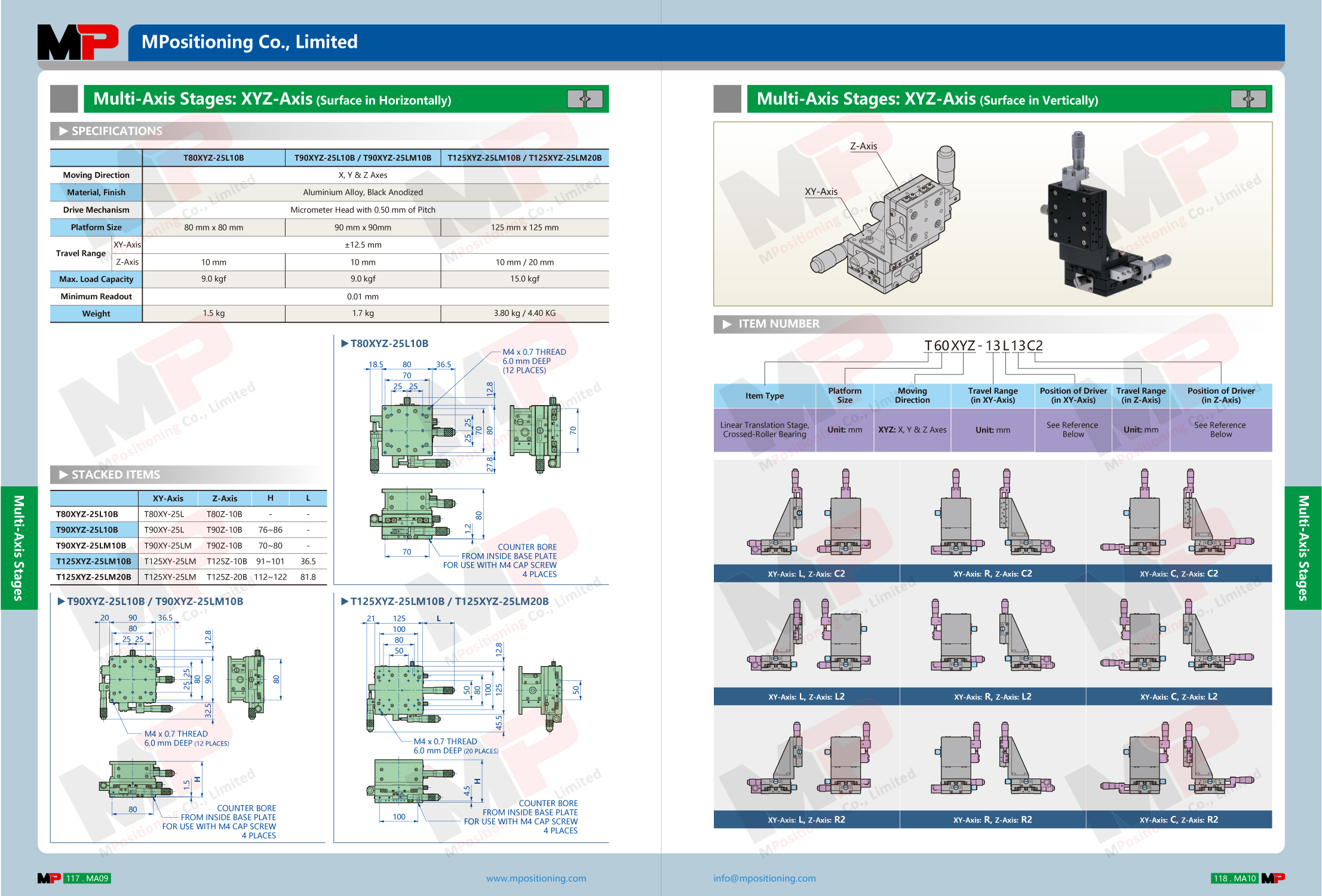

Specifications
|
Part Number |
||||
|
Enjoy Shipping on Amazon |
||||
|
Moving Direction |
X, Y & Z |
|||
|
Travel Range |
± 12.5 mm in X Y, |
±12.5 mm in X Y, |
± 25 mm in XY, 20 mm in Z |
|
|
Platform Size |
125 mm x 125 mm |
|||
|
Drive Mechanism |
Micrometer Head with 0.50 mm of Pitch |
|||
|
Bearing Construction |
Crossed-Roller Bearings |
|||
|
Material, Finish |
Aluminium Alloy, Black Anodized |
|||
|
Minimum Height |
91 mm |
112 mm |
122 mm |
122 mm |
|
Micrometer Minimum Readout |
0.01 mm |
|||
|
Max. Load Capacity |
15.0 kgf |
|||
|
Weight |
3.90 kg |
4.50 kg |
5.50 kg |
5.50 kg |
Related Products
Here, you will find some of related products, configurable systems and accessories.
|
Item Number |
Product Description |
|
10 mm Travel Vertical Stage, Mounting Surface in Horizontally, Support Loading ups to 15 kgf |
|
|
20 mm Travel Vertical Stage, Mounting Surface in Horizontally, Support Loading ups to 15 kgf |
|
|
±12.5 mm Travel Compact XY Translation Stage, 46 mm of Thickness, Support Loading ups to 18 kgf |
|
|
±25 mm Travel XY Translation Stage, 56 mm of Thickness, Support Loading ups to 18 kgf |
|
|
±25 mm Travel XY Translation Stage, 56 mm of Thickness, Support Loading ups to 18 kgf |
|
|
Manual Rotation Stage (Standard Type), Support Loading ups to 3 kgf, Ø125 mm of Platform |
|
|
Manual Rotation Stage (Inlaid Copper Ring), Support Loading ups to 5 kgf, Ø125 mm of Platform |
| Moving Direction | X, Y & Z |
| Travel Range | ±12.5 mm in X Y, 20 mm in Z |
| Platform Size | 125 mm x 125 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Minimum Height | 112 mm (46 mm thickness in XY and 66 min. height in Z) |
| Micrometer Minimum Readout | 0.01 mm |
| Max. Load Capacity | 15.0 kgf |
| Weight | 4.50 kg |
