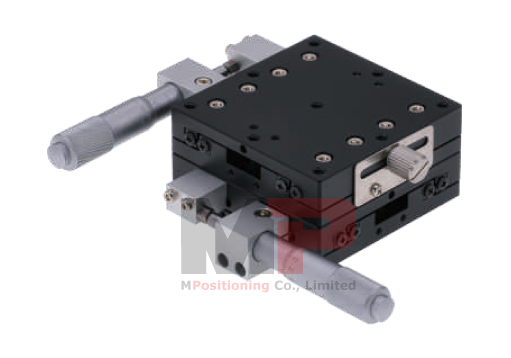

The Precision Manual XY Linear Stage T70XY-25L is stacked by 2 units of Single Axis Linear Stage T70X-25L and features Crossed-Roller Bearing Slide Guides. The 70 mm x 70 mm mounting platform supports up to 6.6 kg with a smooth XY-Axis adjustment range of ±12.5 mm. The actuator of Micrometer Head drives in leftside position of the Single-Axis Translation Stage.
Specifications
|
Part Number |
||||||
|
Moving Direction |
X & Y |
|||||
|
Travel Range |
±6.5 mm |
±12.5 mm |
||||
|
Platform Size |
70 mm x 70 mm |
|||||
|
Drive Mechanism |
Micrometer Head with 0.50 mm of Pitch |
|||||
|
Bearing Construction |
Crossed-Roller Bearings |
|||||
|
Material, Finish |
Aluminium Alloy, Black Anodized |
|||||
|
Thickness |
36 mm |
|||||
|
Minimum Readout |
0.01 mm |
|||||
|
Moving Flatness |
≤ 0.01 mm/13 mm |
≤ 0.02 mm/25 mm |
||||
|
Flatness |
0.06 mm |
|||||
|
Max. Load Capacity |
6.6 kgf |
|||||
|
Weight |
0.60 kg |
0.65 kg |
||||
Related Products
Here, you will find some of related products, configurable systems and accessories.
|
Item Number |
Product Description |
|
±6.5 mm Travel Single-Axis Translation Stage, Support Loading ups to 6.6 kgf, Center-Mounted Micrometer |
|
|
±6.5 mm Travel Single-Axis Translation Stage, Support Loading ups to 6.6 kgf, Leftside-Mounted Micrometer |
|
|
±6.5 mm Travel Single-Axis Translation Stage, Support Loading ups to 6.6 kgf, Rightside-Mounted Micrometer |
|
|
±12.5 mm Travel Single-Axis Translation Stage, Support Loading ups to 6.6 kgf, Center-Mounted Micrometer |
|
|
±12.5 mm Travel Single-Axis Translation Stage, Support Loading ups to 6.6 kgf, Leftside-Mounted Micrometer |
|
|
±12.5 mm Travel Single-Axis Translation Stage, Support Loading ups to 6.6 kgf, Rightside-Mounted Micrometer |
| Moving Direction | X & Y |
| Travel Range | ± 12.5 mm |
| Platform Size | 70 mm x 70 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch, Leftside-Mounted |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Thickness | 36 mm |
| Minimum Readout | 0.01 mm |
| Moving Flatness | ≤ 0.02 mm/25 mm |
| Flatness | 0.06 mm |
| Max. Load Capacity | 6.60 kgf |
| Weight | 0.65 kg |
