Home > Products > Manual Positioning Stages > Manual Linear Stages > T70X-13L Precision Linear Stage with 13 or 25 mm Travel and Leftside-Mounted Micrometer
Description
Specifications Downloads Contact Us
Description

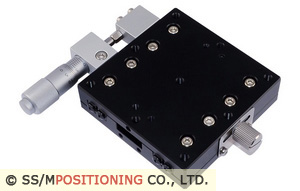

The model T70X-13L (T70X-25L), Manual Linear Stage, features crossed-roller bearing guide for precise linear motion and stable performance over the entire 13 mm (25 mm) travel range.
Micrometer Head drives in leftside-mounted with a 10 μm resolution, and supporting loads up to 6.6 kg. 2 of Single Axis Linear Stages can be set up an XY configuration. For more information about the center- or rightside-mounted micrometer, please try to find the related products as below.
Specifications
| Moving Direction | X |
| Travel Range | ± 6.50 mm (T70X-13L), ± 12.50 mm (T70X-25L) |
| Platform Size | 70 mm x 70 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch, Leftside-Mounted |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Thickness | 18 mm |
| Minimum Readout | 0.01 mm |
| Moving Flatness | ≤ 0.01 mm/13 mm (T70X-13L), ≤ 0.02 mm/25 mm (T70X-25L) |
| Flatness | 0.03 mm |
| Max. Load Capacity | 6.6 kgf |
| Weight | 0.30 kg |
