Home > Products > Manual Positioning Stages > Manual Linear Stages > T70X-13C Precision Linear Stage with 13 or 25 mm Travel and Center-Mounted Micrometer
Description
Specifications Downloads Contact Us
Description

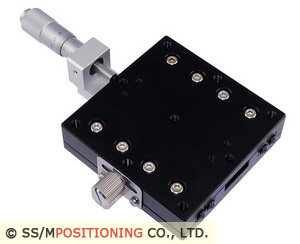

The model T70X-13C (T70X-25C), Manual Linear Stage, features crossed-roller bearing guide for precise linear motion and stable performance over the entire 13 mm (25 mm) travel range.
Micrometer head drives in center-mounted with a 10 μm resolution, and supporting loads up to 5.0 kg. 2 of Single Axis Linear Stages can be set up an XY configuration. For more information about the leftside- or rightside-mounted micrometer, please try to find the related products as below.
Specifications
Moving Direction | X |
Travel Range | ± 6.50 mm (T70X-13C), ± 12.50 mm (T70X-25C) |
Platform Size | 70 mm x 70 mm |
Drive Mechanism | Micrometer Head with 0.50 mm of Pitch, Center-Mounted |
Bearing Construction | Crossed-Roller Bearings |
Material, Finish | Aluminium Alloy, Black Anodized |
Thickness | 18 mm |
Minimum Readout | 0.01 mm |
Moving Flatness | ≤ 0.01 mm/13 mm (T70X-13C), ≤ 0.02 mm/25 mm (T70X-25C) |
Flatness | 0.03 mm |
Max. Load Capacity | 6.6 kgf |
Weight | 0.30 kg |
