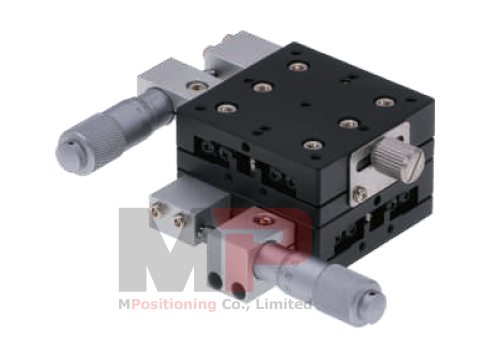

The Precision Manual XY Linear Stage T50XY-13R is stacked by 2 units of Single Axis Linear Stage T50X-13R and features Crossed-Roller Bearing Slide Guides. The 50 mm x 50 mm mounting platform supports up to 4.5 kg with a smooth XY-Axis adjustment range of ±6.5 mm. The actuator of Micrometer Head drives in Rightside position of the Single-Axis Stage.
The modular design allows for XYZ Positioning Stage with our Vertical Stage T50Z-13C2 offers a vertical mounting platform with 13 mm of height adjustment range.
Specifications
|
Part Number |
||||||
|
Enjoy Shipping on Amazon |
||||||
|
Moving Direction |
X |
X & Y |
||||
|
Travel Range |
±6.5 mm |
|||||
|
Platform Size |
50 mm x 50 mm |
|||||
|
Drive Mechanism |
Micrometer Head with 0.50 mm of Pitch |
|||||
|
Bearing Construction |
Crossed-Roller Bearings |
|||||
|
Material, Finish |
Aluminium Alloy, Black Anodized |
|||||
|
Thickness |
18 mm |
36 mm |
||||
|
Minimum Readout |
0.01 mm |
|||||
|
Moving Flatness |
≤ 0.01 mm/13 mm |
|||||
|
Flatness |
0.02 mm |
0.04 mm |
||||
|
Max. Load Capacity |
4.50 kgf |
|||||
|
Weight |
0.20 kg |
0.40 kg |
||||
Related Products
Here you will find some of related products, configurable systems and accessories.
|
Item Number |
Product Description |
|
±6.5 mm Travel Vertical Stage, Center-Mounted Micrometer, Locking Screw in Leftside of the stage |
|
|
T50Z-13C3 |
±6.5 mm Travel Vertical Stage, Center-Mounted Micrometer, Locking Screw in Rightside of the stage |
|
T50Z-13L2 |
±6.5 mm Travel Vertical Stage, Leftside-Mounted Micrometer |
|
T50Z-13R2 |
±6.5 mm Travel Vertical Stage, Rightside-Mounted Micrometer |
| Moving Direction | X & Y |
| Travel Range | ± 6.5 mm |
| Platform Size | 50 mm x 50 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch, Leftside-Mounted |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Thickness | 36 mm |
| Minimum Readout | 0.01 mm |
| Moving Flatness | ≤ 0.01 mm/13 mm |
| Flatness | 0.04 mm |
| Max. Load Capacity | 4.5 kgf |
| Weight | 0.40 kg |
