Description

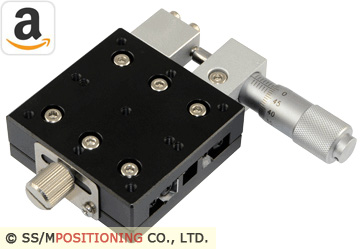

The model T50X-13R, Manual Linear Translation Stage, features crossed-roller bearing guide for precise linear motion and stable performance over the entire 13 mm travel range. Micrometer head drives in center-handed configuration with a 10 μm resolution, and supporting loads up to 4.5 kg. For more information about the left- or right-handed construction, please try to find the related products as below.
The modular design allows for XY configuration as the application requirements you need.
Specifications
| Moving Direction | X |
| Travel Range | ± 6.5 mm |
| Platform Size | 50 mm x 50 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch, Rightside-Mounted |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Thickness | 18 mm |
| Minimum Readout | 0.01 mm |
| Moving Flatness | ≤ 0.01 mm/13 mm |
| Flatness | 0.02 mm |
| Max. Load Capacity | 4.5 kgf |
| Weight | 0.20 kg |
