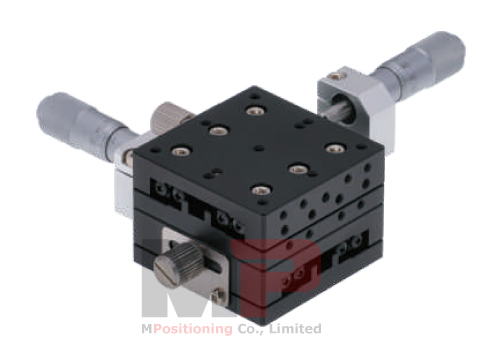

13 mm Travel Manual XY Linear Stage T50XY-13C with Center-Mounted Micrometers

Item No.: T50XY-13C
Key Features
- 50 mm x 50 mm Platform Size
- Lockable Design by a Steel Thumbscrew
- Available for XYZ Positioning Stage
- Crossed-Roller Bearings for Accurate and Smooth Motion
- 4.5 kgf of Load Capacity and ±6.5 mm of XY-Axis Adjustment
Description Specifications Downloads Contact Us
Description

The Precision Manual XY Linear Stage T50XY-13C is stacked by 2 units of Single Axis Linear Stage T50X-13C and features Crossed-Roller Bearing Slide Guides. The 50 mm x 50 mm mounting platform supports up to 4.5 kg with a smooth XY-Axis adjustment range of ±6.5 mm. The actuator of Micrometer Head drives in center position of the Single-Axis Stage.

The modular design allows for XYZ Positioning Stage with our Vertical Stage T50Z-13C2 offers a vertical mounting platform with 13 mm of height adjustment range.

Specifications

Part Number

T50X-13C

T50X-13L

T50X-13R

T50XY-13C

T50XY-13L

T50XY-13R

Enjoy Shipping on Amazon

Buy Now

Buy Now

Buy Now

Buy Now

Buy Now

Buy Now

Moving Direction

X

X & Y

Travel Range

±6.5 mm

Platform Size

50 mm x 50 mm

Drive Mechanism

Micrometer Head with 0.50 mm of Pitch

Bearing Construction

Crossed-Roller Bearings

Material, Finish

Aluminium Alloy, Black Anodized

Thickness

18 mm

36 mm

Minimum Readout

0.01 mm

Moving Flatness

≤ 0.01 mm/13 mm

Flatness

0.02 mm

0.04 mm

Max. Load Capacity

4.50 kgf

Weight

0.20 kg

0.40 kg

Related Products

Here you will find some of related products, configurable systems and accessories.



Item Number

Product Description

T50Z-13C2

±6.5 mm Travel Vertical Stage, Center-Mounted Micrometer, Locking Screw in Leftside of the stage

T50Z-13C3

±6.5 mm Travel Vertical Stage, Center-Mounted Micrometer, Locking Screw in Rightside of the stage

T50Z-13L2

±6.5 mm Travel Vertical Stage, Leftside-Mounted Micrometer

T50Z-13R2

±6.5 mm Travel Vertical Stage, Rightside-Mounted Micrometer

Specifications
Moving Direction X & Y
Travel Range ± 6.5 mm
Platform Size 50 mm x 50 mm
Drive Mechanism Micrometer Head with 0.50 mm of Pitch, Center-Mounted
Bearing Construction Crossed-Roller Bearings
Material, Finish Aluminium Alloy, Black Anodized
Thickness 36 mm
Minimum Readout 0.01 mm
Moving Flatness ≤ 0.01 mm/13 mm
Flatness 0.04 mm
Max. Load Capacity 4.5 kgf
Weight 0.40 kg
