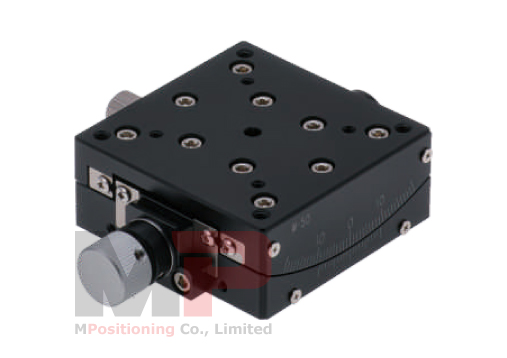

Precision Goniometer Stage GW60X-50L with 50, 75, 100 or 125 mm Distance

Item No.: GW60X-50L
- 60 x 60 mm Platform
- 50, 75, 100, 125 mm Distance to Point of Rotation
- 1° Graduation Marks on Side & Fully Lockable
- Backlash-Free Spring-Loaded Design
- Crossed-Roller Bearings & Worm-Gear Driving for an Accurate & Repeatable Motion
Description Specifications Downloads Contact Us
Description

The Precision Metric Manual Goniometer or Goniometric Stage GW60X-50L is equipped with the Crossed-Roller Bearings and Worm-Gear Driving for an accurate and repeatable positioning, features the backlash-free spring-loaded design. The 60 mm x 60 mm mounting platform supports up to 5.0 kgf with a smooth rotation range of ±10°, provides four M3 x 0.5 taps on 32 mm center and four M4 x 0.7 taps on 50 mm center. Mounting slots for M4 are provided from inside of the bottom plate.

A side mounted steel thumbscrew can be used to lock the moving table in a desired position. The steel thumbscrew of item GW60X-50L is positioned in left side of the Goniometric Stage. The steel thumbscrew of item GW60X-50R is positioned in right side of the Goniometer.

The item GWX-50L will be with 50 mm distance to point of rotation center. 75 mm, 100 mm and 125 mm distances are also available.

The Goniometer GW60X-50L or GW60X-50R is the Upper Goniometric Stage and offers 50 mm distance to point of rotation center. The Lower Goniometer will be GW60X-75L or GW60X-75R which offers 750 mm distance to point of rotation center and ±8° rotation. The Dual-Axis Goniometers GW60XY-50L and GW60XY-50R consist of both Upper and Lower Goniometric Stages that will rotate about the same rotation center above the top mounting surface with 50 mm distance.

Specifications

Part Number

GW60X-50L

GW60X-75L

GW60X-100L

GW60X-125L

GW60XY-50L

GW60XY-75L

GW60XY-100L

GW60X-50R

GW60X-75R

GW60X-100R

GW60X-125R

GW60XY-50R

GW60XY-75R

GW60XY-100R

Enjoy Shipping on Amazon

Buy Now

Buy Now

Buy Now

Buy Now

Buy Now

Buy Now

Buy Now

Moving Direction

α

α & β

Rotation Range

±10°

±8°

±5°

±4°

±10° 1, ±8° 2

±8° 1, ±5° 2

±5° 1, ±4° 2

Platform Size

60 mm x 60 mm

60 mm x 60 mm

Drive Mechanism

Worm & Gear

Worm & Gear

Bearing Construction

Crossed-Roller Bearings

Crossed-Roller Bearings

Material, Finish

Aluminium Alloy, Black Anodized

Aluminium Alloy, Black Anodized

Height of Rotation Center (mm)

50 ±0.2

75 ±0.2

100 ±0.2

125 ±0.2

50 ±0.4

75 ±0.4

100 ±0.4

Thickness

25 mm

50 mm

Adjustment Range
 per Rev. of Knob

2.25°

1.6°

1.23°

2.25° 1
1.6° 2

1.6° 1
1.23° 2

1.23° 1
2

Minimum Readout

0.1°

0.1° 1, 0.1° 2

Max. Load Capacity

5.0 kgf

5.0 kgf

Weight

0.40 kg

0.80 kg

1. Upper Goniometer, 2. Lower Goniometer

Specifications
Moving Direction α
Rotation Range ±10°
Platform Size 60 mm x 60 mm
Drive Mechanism Worm & Gear
Bearing Construction Crossed-Roller Bearings
Material, Finish Aluminium Alloy, Black Anodized
Height of Rotation Center (W) 50 ±0.2 mm
Adjustment Range per Rev. of Knob ≈2.25°
Minimum Readout 0.1°
Thickness 25 mm
Max. Load Capacity 5.0 kgf
Weight 0.40 kg
