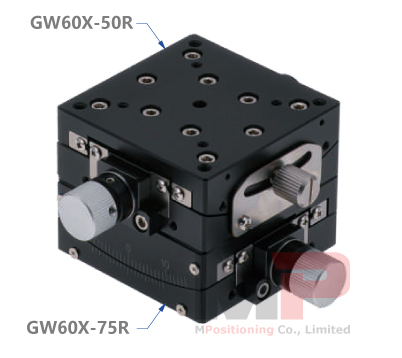

The Precision Dual-Axis Goniometer or Goniometric Stage GW60XY-50R is stacked by an Upper Goniometer GW60X-50R and a Lower Goniometer GW60X-75R. Both the Upper and Lower Goniometric Stages will rotate about the same rotation center above the top mounting surface with 50 mm. The 60 mm x 60 mm mounting platform supports up to 5.0 kgf and provides four M3 x 0.5 taps on 32 mm center and four M4 x 0.7 taps on 50 mm center. Mounting slots for M4 are provided from inside of the bottom plate.
Specifications
|
Part Number |
GW60X-75L |
GW60X-100L |
GW60X-125L |
GW60XY-75L |
GW60XY-100L |
||
|
GW60X-75R |
GW60X-100R |
GW60X-125R |
GW60XY-75R |
GW60XY-100R |
|||
|
Enjoy Shipping on Amazon |
|||||||
|
Moving Direction |
α |
α & β |
|||||
|
Rotation Range |
±10° |
±8° |
±5° |
±4° |
±10° 1, ±8° 2 |
±8° 1, ±5° 2 |
±5° 1, ±4° 2 |
|
Platform Size |
60 mm x 60 mm |
60 mm x 60 mm |
|||||
|
Drive Mechanism |
Worm & Gear |
Worm & Gear |
|||||
|
Bearing Construction |
Crossed-Roller Bearings |
Crossed-Roller Bearings |
|||||
|
Material, Finish |
Aluminium Alloy, Black Anodized |
Aluminium Alloy, Black Anodized |
|||||
|
Height of Rotation Center (mm) |
50 ±0.2 |
75 ±0.2 |
100 ±0.2 |
125 ±0.2 |
50 ±0.4 |
75 ±0.4 |
100 ±0.4 |
|
Thickness |
25 mm |
50 mm |
|||||
|
Adjustment Range |
≈2.25° |
≈1.6° |
≈1.23° |
≈1° |
≈2.25° 1 |
≈1.6° 1 |
≈1.23° 1 |
|
Minimum Readout |
0.1° |
0.1° 1, 0.1° 2 |
|||||
|
Max. Load Capacity |
5.0 kgf |
5.0 kgf |
|||||
|
Weight |
0.40 kg |
0.80 kg |
|||||
1. Upper Goniometer, 2. Lower Goniometer
| Moving Direction | α & β |
| Rotation Range | ±10°(Upper), ±8°(Lower) |
| Platform Size | 60 mm x 60 mm |
| Drive Mechanism | Worm & Gear |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Height of Rotation Center (W) | 50 ±0.2 mm |
| Adjustment Range per Rev. of Knob | ≈2.25°(Upper), ≈1.6°(Lower) |
| Minimum Readout | 0.1° (Upper), 0.1° (Lower) |
| Thickness | 50 mm |
| Max. Load Capacity | 5.0 kgf |
| Weight | 0.80 kg |
