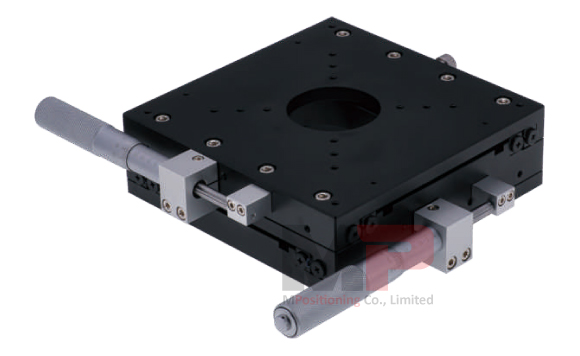

The Precision Manual XY Translation Stage T160XY-50RK is equipped with the Crossed-Roller Bearings, assembled with 3 plates (top, middle and bottom) into one body and features 50 mm of Clear Aperture in center of the platform. The 50 mm of thickness will be thinner than the regular item T160XY-50R. The Compact Design means the X and Y axes cannot be disassembled into 2 of Single Axis Linear Stages.
The large 160 mm x 160 mm mounting platform supports up to 40 kg with a smooth XY-Axis adjustment range of ±25.0 mm. The actuator of Micrometer Head drives in rightside position of the Single-Axis Stage.
The modular design allows for Multi-Axis Positioning Stage with our Manual Lab Jack or Manual Rotation Stage. The Laboratory Jack L01Z-70 will support the XY Translation T160XY-50L and provide 70 mm of height adjustment range. The Rotation Stage R160B-LK or R160B-RK can be stacked on top platform of the XY Translation for Multi-Axis Positioning Solutions.
Specifications
|
Part Number |
||||
|
Clear Aperture |
- |
- |
50 mm in Diameter |
|
|
Moving Direction |
X |
X & Y |
||
|
Travel Range |
±25.0 mm |
|||
|
Platform Size |
160 mm x 160 mm |
|||
|
Drive Mechanism |
Micrometer Head with 0.50 mm of Pitch |
|||
|
Bearing Construction |
Crossed-Roller Bearings |
|||
|
Material, Finish |
Aluminium Alloy, Black Anodized |
|||
|
Thickness |
50 mm |
50 mm |
||
|
Minimum Readout |
0.01 mm |
|||
|
Moving Flatness |
≤ 0.04 mm/50 mm |
|||
|
Flatness |
0.10 mm |
0.10 mm |
||
|
Max. Load Capacity |
40.0 kgf |
|||
|
Weight |
4.30 kg |
3.90 kg |
||
| Moving Direction | X & Y |
| Clear Aperture | 50 mm in Diameter |
| Travel Range | ±25.0 mm |
| Platform Size | 160 mm x 160 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch, Rightside-Mounted |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Thickness | 50 mm |
| Minimum Readout | 0.01 mm |
| Moving Flatness | ≤ 0.04 mm/50 mm |
| Flatness | 0.10 mm |
| Max. Load Capacity | 40.0 kgf |
| Weight | 3.90 kg |
