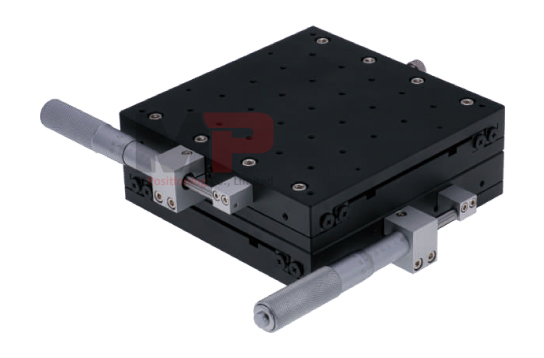

The Precision Manual XY Translation Stage T160XY-50R is stacked by 2 units of Single Axis Translation Stage T160X-50R and features Crossed-Roller Bearing Slide Guides. The large 160 mm x 160 mm mounting platform supports up to 40 kg with a smooth XY-Axis adjustment range of ±25.0 mm. The actuator of Micrometer Head drives in rightside position of the Single-Axis Stage.
The modular design allows for Multi-Axis Positioning Stage with our Manual Lab Jack or Manual Rotation Stage. The Laboratory Jack L01Z-70 will support the XY Translation T160XY-50R and provide 70 mm of height adjustment range. The Rotation Stage R160B-LK or R160B-RK can be stacked on top platform of the XY Translation for Multi-Axis Positioning Solutions.
Specifications
|
Part Number |
||||
|
Enjoy Shipping on Amazon |
- |
- |
- |
- |
|
Moving Direction |
X |
X & Y |
||
|
Travel Range |
±25.0 mm |
|||
|
Platform Size |
160 mm x 160 mm |
|||
|
Drive Mechanism |
Micrometer Head with 0.50 mm of Pitch |
|||
|
Bearing Construction |
Crossed-Roller Bearings |
|||
|
Material, Finish |
Aluminium Alloy, Black Anodized |
|||
|
Thickness |
30 mm |
60 mm |
||
|
Minimum Readout |
0.01 mm |
|||
|
Moving Flatness |
≤ 0.04 mm/50 mm |
|||
|
Flatness |
0.05 mm |
0.10 mm |
||
|
Max. Load Capacity |
40.0 kgf |
|||
|
Weight |
2.60 kg |
5.20 kg |
||
| Moving Direction | X & Y |
| Travel Range | ±25.0 mm |
| Platform Size | 160 mm x 160 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch, Rightside-Mounted |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Thickness | 60 mm |
| Minimum Readout | 0.01 mm |
| Moving Flatness | ≤ 0.04 mm/50 mm |
| Flatness | 0.10 mm |
| Max. Load Capacity | 40.0 kgf |
| Weight | 6.20 kg |
