Description

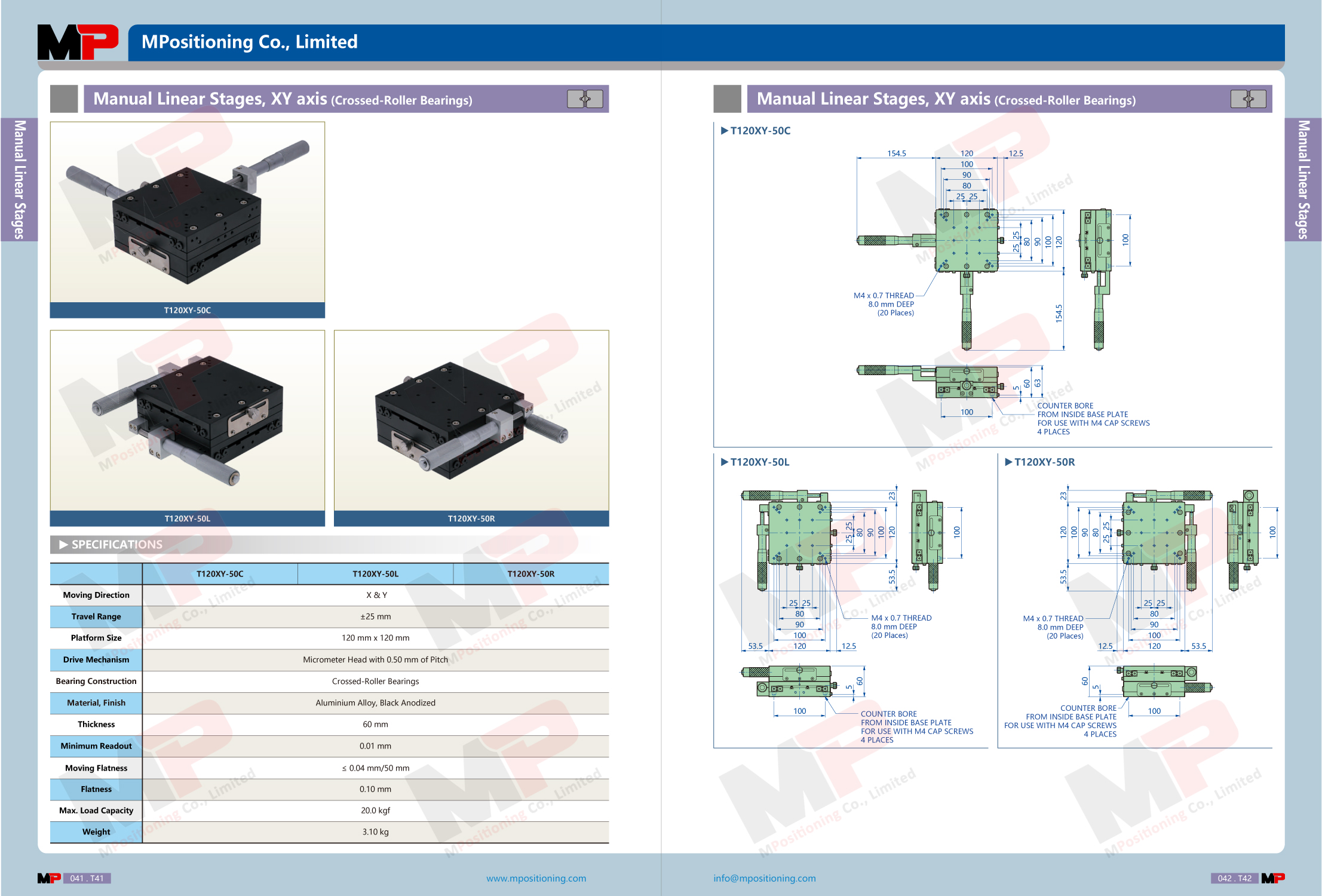

The Precision Manual XY Translation Stage T120XY-50R is assembled by 2 units of Single Axis Translation Stage T120X-50R and features Crossed-Roller Bearing Slide Guides. The large 120 mm x 120 mm mounting platform supports up to 20 kg with a smooth XY-Axis adjustment range of ±25 mm. The actuator of Micrometer Head drives in rightside position of the Single-Axis Stage.
Specifications
|
Part Number |
||||||
|
Moving Direction |
X & Y |
|||||
|
Travel Range |
±25 mm |
|||||
|
Platform Size |
120 mm x 120 mm |
|||||
|
Drive Mechanism |
Micrometer Head with 0.50 mm of Pitch |
|||||
|
Bearing Construction |
Crossed-Roller Bearings |
|||||
|
Material, Finish |
Aluminium Alloy, Black Anodized |
|||||
|
Thickness |
60 mm |
50 mm |
||||
|
Minimum Readout |
0.01 mm |
|||||
|
Moving Flatness |
≤ 0.04 mm/50 mm |
|||||
|
Flatness |
0.10 mm |
|||||
|
Max. Load Capacity |
20.0 kgf |
|||||
|
Weight |
3.10 kg |
2.70 kg |
||||
Specifications
| Moving Direction | X & Y |
| Travel Range | ±25 mm |
| Platform Size | 120 mm x 120 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch, Rightside-Mounted |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Thickness | 60 mm |
| Minimum Readout | 0.01 mm |
| Moving Flatness | ≤ 0.04 mm/50 mm |
| Flatness | 0.10 mm |
| Max. Load Capacity | 20.0 kgf |
| Weight | 3.10 kg |
