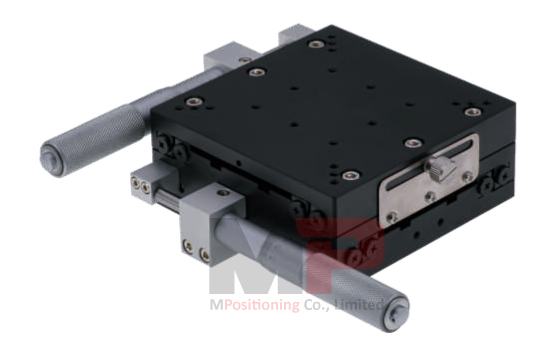

50 mm Travel Compact XY Translation Stage T120XY-50LM Larger-Area Platform

Item No.: T120XY-50LM
- Larger-Area 120 x 120 mm Platform Size
- 0.01 mm Micrometer Minimum Readout
- Lockable Design by a Steel Thumbscrew
- Crossed-Roller Bearings for Accurate & Smooth Motion
- 20.0 kgf of Load Capacity, ±25 mm of XY-Axis Translation
Description Specifications Downloads Contact Us
Description

The Compact XY Translation Stage T120XY-50LM features the assembly with three plates (top, middle and bottom) in one body, and the thickness will be 50 mm. It is also equipped with the Crossed-Roller Bearings. The large 120 mm x 120 mm mounting platform supports up to 20 kg with a smooth XY-Axis adjustment range of ±25 mm. The actuator of Micrometer Head drives in leftside position of the Single-Axis Stage.

The Compact Design means the X and Y axes cannot be disassembled into 2 of Single Axis Linear Stages.

Specifications

Part Number

T120XY-50C

T120XY-50L

T120XY-50R

T120XY-50CM

T120XY-50LM

T120XY-50RM

Moving Direction

X & Y

Travel Range

±25 mm

Platform Size

120 mm x 120 mm

Drive Mechanism

Micrometer Head with 0.50 mm of Pitch

Bearing Construction

Crossed-Roller Bearings

Material, Finish

Aluminium Alloy, Black Anodized

Thickness

60 mm

50 mm

Minimum Readout

0.01 mm

Moving Flatness

≤ 0.04 mm/50 mm

Flatness

0.10 mm

Max. Load Capacity

20.0 kgf

Weight

3.10 kg

2.70 kg

Specifications
Moving Direction X & Y
Travel Range ±25 mm
Platform Size 120 mm x 120 mm
Drive Mechanism Micrometer Head with 0.50 mm of Pitch, Leftside-Mounted
Bearing Construction Crossed-Roller Bearings
Material, Finish Aluminium Alloy, Black Anodized
Thickness 50 mm
Minimum Readout 0.01 mm
Moving Flatness ≤ 0.04 mm/50 mm
Flatness 0.10 mm
Max. Load Capacity 20.0 kgf
Weight 2.70 kg
