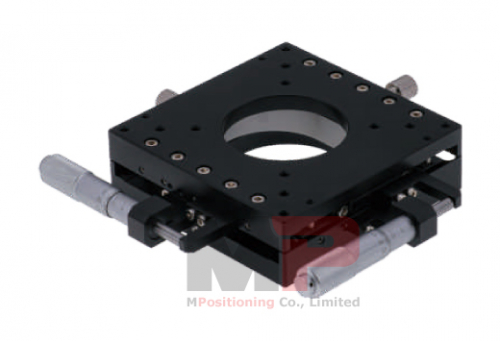

25 mm Travel XY Linear Stage T100XY-25RK with Clear Aperture for Optics

Item No.: T100XY-25RK
- 100 x 100 mm Platform Size
- Lockable Design by a Steel Thumbscrew
- Crossed-Roller Bearings for Accurate & Smooth Motion
- 6.5 kgf of Loading and ±12.5 mm of XY-Axis Adjustment
- Ø50 mm of Clear Aperture for Optics and Optomechanical Assemblies
Description Specifications Downloads Contact Us
Description

The Precision Manual XY Linear Stage T100XY-25RK features an Ø50 mm of Clear Aperture for large Optics and Optomechanical Assemblies. It is equipped with the Crossed-Roller Bearing Slide Guides. The 100 mm x 100 mm mounting platform supports up to 6.5 kg with a smooth XY-Axis adjustment range of ±12.5 mm. The actuator of Micrometer Head drives in rightside position of the Single-Axis Stage.

The modular design allows for Multi-Axis Positioning Solutions with our Manual Rotation Stage R100C-LK.

Specifications

Part Number

T100XY-25CB

T100XY-25LB

T100XY-25RB

T100XY-25CK

T100XY-25LK

T100XY-25RK

Moving Direction

X & Y

Travel Range

±12.5 mm

Platform Size

100 mm x 100 mm

Drive Mechanism

Micrometer Head with 0.50 mm of Pitch

Bearing Construction

Crossed-Roller Bearings

Material, Finish

Aluminium Alloy, Black Anodized

Thickness

22 mm

30 mm

Clear Aperture

-

Ø50 mm

Minimum Readout

0.01 mm

Moving Flatness

≤ 0.02 mm/25 mm

Flatness

0.06 mm

Max. Load Capacity

4.0 kgf

6.5 kgf

Weight

1.0 kg

0.9 kg

Specifications
Moving Direction X & Y
Travel Range ± 12.5 mm
Platform Size 100 mm x 100 mm
Drive Mechanism Micrometer Head with 0.50 mm of Pitch, Rightside-Mounted
Bearing Construction Crossed-Roller Bearings
Material, Finish Aluminium Alloy, Black Anodized
Thickness 30 mm
Clear Aperture Ø50 mm
Minimum Readout 0.01 mm
Moving Flatness ≤ 0.02 mm/25 mm
Flatness 0.06 mm
Max. Load Capacity 6.5 kgf
Weight 0.9 kg
