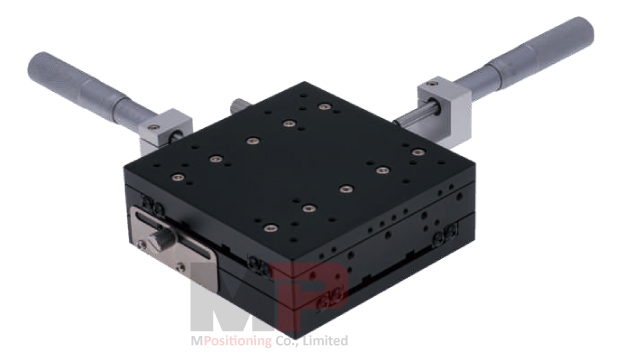

Precision 50 mm Travel Compact Manual XY Linear Stage T125XY-50CM

Item No.: T125XY-50CM
- Larger-Area 125 x 125 mm Platform Size
- 0.01 mm Micrometer Minimum Readout
- Lockable Design by a Steel Thumbscrew
- Crossed-Roller Bearings for Accurate & Smooth Motion
- 18.0 kgf of Load Capacity, ±25.0 mm of XY-Axis Translation
Description Specifications Downloads Contact Us
Description

The Compact Manual XY Linear Stage T125XY-50CM features the assembly with three plates (top, middle and bottom) in one body, and the thickness will be 46 mm. It is also equipped with the Crossed-Roller Bearings. The large 125 mm x 125 mm mounting platform supports up to 18 kg with a smooth XY-Axis adjustment range of ±25.0 mm. The actuator of Micrometer Head drives in center position of the Single Axis Translation Stage.

The Compact Design means the X and Y axes cannot be disassembled into 2 of Single Axis Linear Stages.

The modular design allows for Multi-Axis Positioning Stage with our Vertical Stage and Manual Rotation Stage. The optional Z-axis Vertical Stages are T125Z-10B and T125Z-20B offer a horizontal mounting platform with 10 mm and 20 mm of height adjustment ranges. The Vertical Translation Stage T125Z-25C2 offers a vertical mounting platform with ±12.5 mm of height adjustment range. The Rotation Stage R125A-L or R125B-L can be stacked on mounting platform of the XY Translation for Multi-Axis Positioning Solutions.

Specifications

Part Number

T125XY-50C

T125XY-50L

T125XY-50R

T125XY-50CM

T125XY-50LM

T125XY-50RM

Enjoy Shipping on Amazon

Buy Now

Buy Now

Buy Now

-

-

-

Moving Direction

X & Y

Travel Range

±25.0 mm

Platform Size

125 mm x 125 mm

Drive Mechanism

Micrometer Head with 0.50 mm of Pitch

Bearing Construction

Crossed-Roller Bearings

Material, Finish

Aluminium Alloy, Black Anodized

Thickness

56 mm

46 mm

Minimum Readout

0.01 mm

Moving Flatness

≤ 0.04 mm/50 mm

Flatness

0.08 mm

Max. Load Capacity

18.0 kgf

Weight

3.00 kg

2.60 kg

Specifications
Moving Direction X & Y
Travel Range ±25.0 mm
Platform Size 125 mm x 125 mm
Drive Mechanism Micrometer Head with 0.50 mm of Pitch, Center-Mounted
Bearing Construction Crossed-Roller Bearings
Material, Finish Aluminium Alloy, Black Anodized
Thickness 46 mm
Minimum Readout 0.01 mm
Moving Flatness ≤ 0.04 mm/50 mm
Flatness 0.08 mm
Max. Load Capacity 18.0 kgf
Weight 2.60 kg
