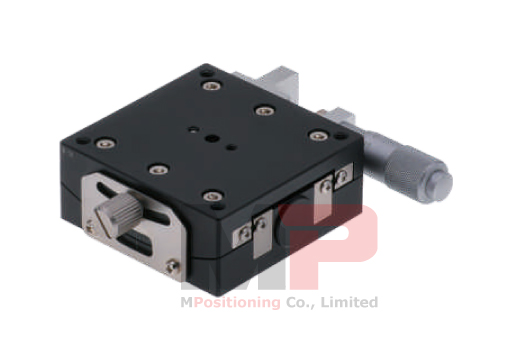

The Precision Metric Manual Goniometer or Goniometric Stage GM60X-50R is equipped with the Crossed-Roller Bearings and Micrometer-Driven for an accurate and repeatable positioning, features the backlash-free spring-loaded design. The 60 mm x 60 mm mounting platform supports up to 5.0 kgf with a smooth rotation range of ±6°, provides four M4 x 0.7 taps on 50 mm center. Mounting slots for M4 are provided from inside of the bottom plate.
When the Micrometer Head drives in left side of the Goniometric Stage, the item number is GM60X-50L. When it drives in right side, the item number is GM60X-50R. A side mounted steel thumbscrew can be used to lock the moving table in a desired position.
The Goniometer GM60X-50L or GM60X-50R will be with 50 mm distance to point of rotation center. 75 mm, 100 mm and 125 mm distances are available.
When we need an XY Configuration, the Upper Goniometric Stage will be GM60X-50L or GM60X-50R, and the Lower Goniometer will be GM60X-75L or GM60X-75R. The Dual-Axis Goniometer GM60XY-50L or GM60XY-50R consists of both Upper and Lower Goniometric Stages that will rotate about the same rotation center above the top mounting surface with 50 mm distance.
Specifications
|
Part Number |
GM60X-75L |
GM60X-100L |
GM60X-125L |
GM60XY-75L |
GM60XY-100L |
||
|
GM60X-75R |
GM60X-100R |
GM60X-125R |
GM60XY-75R |
GM60XY-100R |
|||
|
Enjoy Shipping on Amazon |
|||||||
|
Moving Direction |
α |
α & β |
|||||
|
Rotation Range |
±6° |
±4° |
±5° |
±4° |
±6° *, ±4° ** |
±4° *, ±5° ** |
±5° *, ±4° ** |
|
Platform Size |
60 mm x 60 mm |
60 mm x 60 mm |
|||||
|
Drive Mechanism |
Micrometer Head with 0.5 mm of Pitch |
Micrometer Head with 0.5 mm of Pitch |
|||||
|
Bearing Construction |
Crossed-Roller Bearings |
Crossed-Roller Bearings |
|||||
|
Material, Finish |
Aluminium Alloy, Black Anodized |
Aluminium Alloy, Black Anodized |
|||||
|
Height of Rotation Center (mm) |
50 ±0.2 |
75 ±0.2 |
100 ±0.2 |
125 ±0.2 |
50 ±0.4 |
75 ±0.4 |
100 ±0.4 |
|
Thickness |
25 mm |
50 mm |
|||||
|
Min Readout per |
≈32” |
≈25” |
≈18” |
≈15” |
≈32” * |
≈25” * |
≈18” * |
|
Minimum Readout |
1° |
1° |
0.5° |
0.5° |
1° *, 1° ** |
1° *, 0.5° ** |
0.5° *, 0.5° ** |
|
Max. Load Capacity |
5.0 kgf |
5.0 kgf |
|||||
|
Weight |
0.40 kg |
0.80 kg |
|||||
* Upper Goniometer, ** Lower Goniometer
| Moving Direction | α |
| Rotation Range | ±6° |
| Platform Size | 60 mm x 60 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Height of Rotation Center (W) | 50 ±0.2 mm |
| Min Readout per Graduation on Micrometer | ≈32” |
| Minimum Readout | 1° |
| Thickness | 25 mm |
| Max. Load Capacity | 5.0 kgf |
| Weight | 0.40 kg |
