Dual-Axis Goniometer Stage GW40XY-40L

Item No.: GW40XY-40L
- 40 x 40 mm Platform Supports up to 3 kgf
- 40 mm Distance to Point of Rotation
- 1° Graduation Marks on Side & Fully Lockable
- Backlash-Free Spring-Loaded Design
- Crossed-Roller Bearings & Worm-Gear Driving for an Accurate & Repeatable Motion
Description Specifications Downloads Contact Us
Description

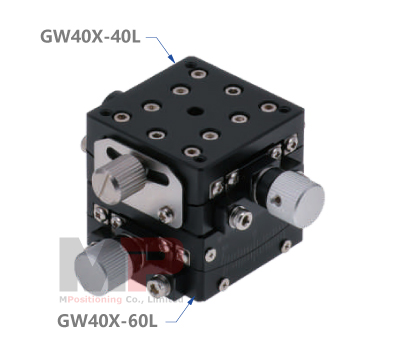

The Precision Dual-Axis Goniometer or Goniometric Stage GW40XY-40L is stacked by an Upper Goniometer GW40X-40L and a Lower Goniometer GW40X-60L. Both the Upper and Lower Goniometric Stages will rotate about the same rotation center above the top mounting surface with 40 mm. The small 40 mm x 40 mm mounting platform supports up to 3.0 kgf and provide four M3 x 0.5 tapped mounting holes on 32 mm centers. Mounting slots for M3 are provided from inside of the bottom plate.

Specifications

Part Number

GW40X-40L

GW40X-40R

GW40X-60L

GW40X-60R

GW40XY-40L

GW40XY-40R

Enjoy Shipping on Amazon

Buy Now

Buy Now

Buy Now

Buy Now

Buy Now

Buy Now

Moving Direction

α

α & β

Rotation Range

±10°

±6°

±10° (Upper), ±6° (Lower)

Platform Size

40 mm x 40 mm

Drive Mechanism

Worm & Gear

Bearing Construction

Crossed-Roller Bearings

Material, Finish

Aluminium Alloy, Black Anodized

Height of Rotation Center (W)

40 ±0.2 mm

60 ±0.2 mm

40 ±0.4 mm

Min Readout per Rev. of Knob

1.5° (Approx.)

1.6° (Approx.)

1.5° (Upper), 1.6° (Lower)

Minimum Readout

0.1°

0.1°

0.1°

Thickness

20 mm

40 mm

Max. Load Capacity

3.0 kgf

3.0 kgf

Weight

0.20 kg

0.40 kg

Specifications
Moving Direction α & β
Rotation Range ±10° (Upper), ±6° (Lower)
Platform Size 40 mm x 40 mm
Drive Mechanism Worm & Gear
Bearing Construction Crossed-Roller Bearings
Material, Finish Aluminium Alloy, Black Anodized
Height of Rotation Center (W) 40 ±0.2 mm
Min Readout per Rev. of Knob 1.5° (Upper), 1.6° (Lower)
Minimum Readout 0.1°
Thickness 40 mm
Max. Load Capacity 3.0 kgf
Weight 0.40 kg
