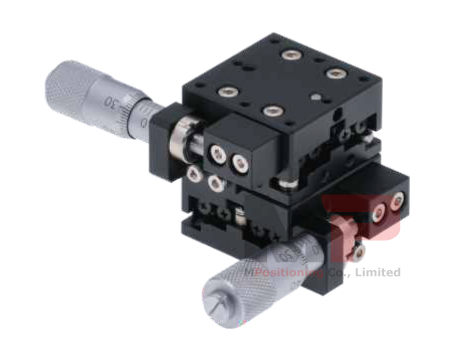

6.5 mm Travel Mini XY Linear Stage T25XY-6R with Rightside-Mounted Micrometers

Item No.: T25XY-6R
Key Features
- Mini 25 mm x 25 mm Mounting Platform
- Lockable Design by a Side-Located Screw
- Crossed-Roller Bearings for Accurate and Smooth Motion
- 1.0 kgf of Load Capacity and ±3.25 mm of XY-Axis Translation
Description Specifications Downloads Contact Us
Description

The Minimum Manual XY Linear Translation Stage T25XY-6R is stacked by 2 units of Single Axis Linear Stages T25X-6R and features Crossed-Roller Bearing Slide Guides. This is one of our smallest XY Translators. The 25 mm x 25 mm mounting platform supports up to 1.0 kg with a smooth XY-Axis adjustment range of ±3.25 mm. The actuator of Micrometer Head drives in rightside of the Single-Axis Stage.

Specifications



Part Number

T25X-6C

T25X-6L

T25X-6R

T25XY-6C

T25XY-6L

T25XY-6R

Moving Direction

X

X & Y

Travel Range

±3.25 mm

Platform Size

25 mm x 25 mm

Drive Mechanism

Micrometer Head with 0.50 mm of Pitch

Bearing Construction

Crossed-Roller Bearings

Material, Finish

Aluminium Alloy, Black Anodized

Thickness

15 mm

30 mm

Minimum Readout

0.01 mm

Moving Flatness

≤ 0.005 mm/6.5 mm

Flatness

0.01 mm

0.02 mm

Max. Load Capacity

1.0 kgf

Weight

0.05 kg

0.10 kg

Specifications
Moving Direction X & Y
Travel Range ±3.25 mm
Platform Size 25 mm x 25 mm
Drive Mechanism Micrometer Head with 0.50 mm of Pitch, Rightside-Mounted
Bearing Construction Crossed-Roller Bearings
Material, Finish Aluminium Alloy, Black Anodized
Thickness 30 mm
Minimum Readout 0.01 mm
Moving Flatness ≤ 0.005 mm/6.5 mm
Flatness 0.02 mm
Max. Load Capacity 1.0 kgf
Weight 0.10 kg
