Description

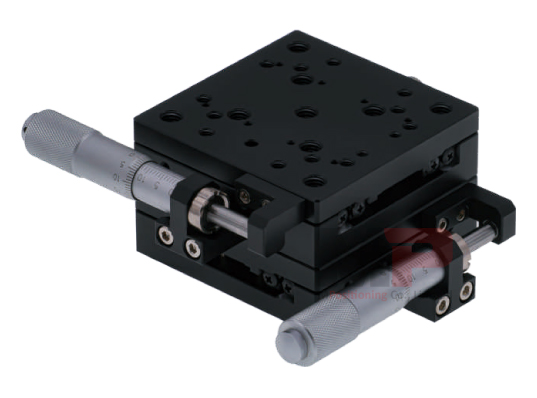

The Precision XY Linear Stage T65XY-25R is stacked by 2 units of Single Axis Linear Stage T65X-25R and features Crossed-Roller Bearing Slide Guides. The 65 mm x 65 mm mounting platform supports up to 5.0 kg with a smooth XY-Axis adjustment range of ±12.5 mm. The actuator of Micrometer Head drives in rightside position of the Single-Axis Stage.

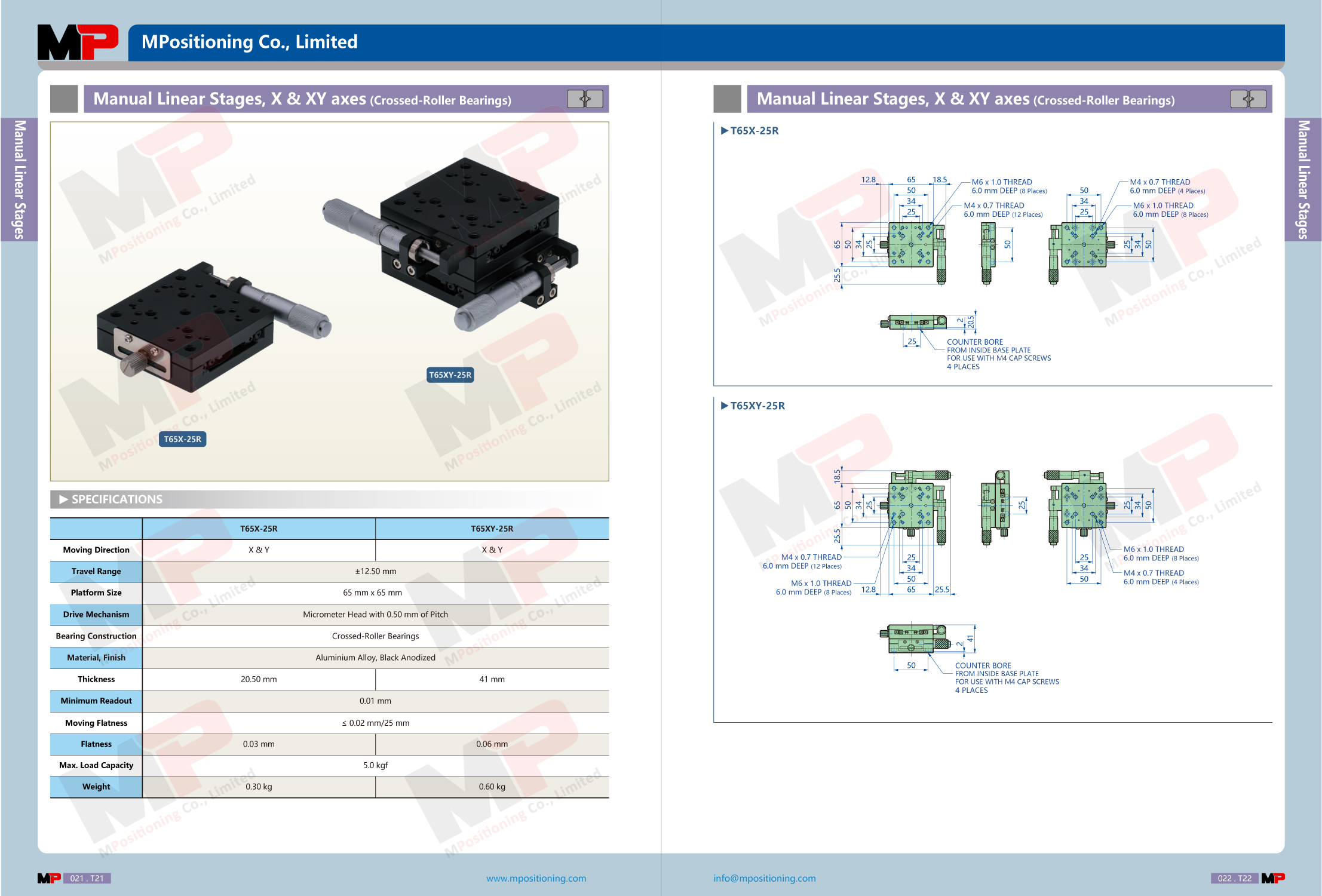

Specifications
|
Part Number |
||
|
Moving Direction |
X & Y |
|
|
Travel Range |
±12.5 mm |
|
|
Platform Size |
65 mm x 65 mm |
|
|
Drive Mechanism |
Micrometer Head with 0.50 mm of Pitch, Rightside-Mounted |
|
|
Bearing Construction |
Crossed-Roller Bearings |
|
|
Material, Finish |
Aluminium Alloy, Black Anodized |
|
|
Thickness |
20.5 mm |
41.0 mm |
|
Minimum Readout |
0.01 mm |
|
|
Moving Flatness |
≤ 0.02 mm/25 mm |
|
|
Flatness |
0.03 mm |
0.06 mm |
|
Max. Load Capacity |
5.0 kgf |
|
|
Weight |
0.30 kg |
0.60 kg |
Specifications
| Moving Direction | X & Y |
| Travel Range | ± 12.5 mm |
| Platform Size | 65 mm x 65 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch, Rightside-Mounted |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Thickness | 41.0 mm |
| Minimum Readout | 0.01 mm |
| Moving Flatness | ≤ 0.02 mm/25 mm |
| Flatness | 0.06 mm |
| Max. Load Capacity | 5.0 kgf |
| Weight | 0.60 kg |
