13 mm Travel XY Linear Stage T40XY-13LB with Ultra-Thin 22 mm of Thickness

Item No.: T40XY-13LB
Features
- 40 x 40 mm Platform Size
- Ultra-Thin Type with 22 mm of Thickness
- Lockable Design by a Steel Thumbscrew
- Crossed-Roller Bearings for Accurate and Smooth Motion
- 1.0 kgf of Loading and ±6.5 mm of XY-Axis Adjustment
Description Specifications Downloads Contact Us
Description

The Manual XY Linear Stage T40XY-13LB is one of our Ultra-Thin XY-Axis Stage with 22 mm of thickness for the applications in a limited space. It is equipped with the Crossed-Roller Bearing Slide Guides. The 40 mm x 40 mm mounting platform supports up to 1.0 kg with a smooth XY-Axis adjustment range of ±6.5 mm. The actuator of Micrometer Head drives in leftside position of the Single-Axis Stage.

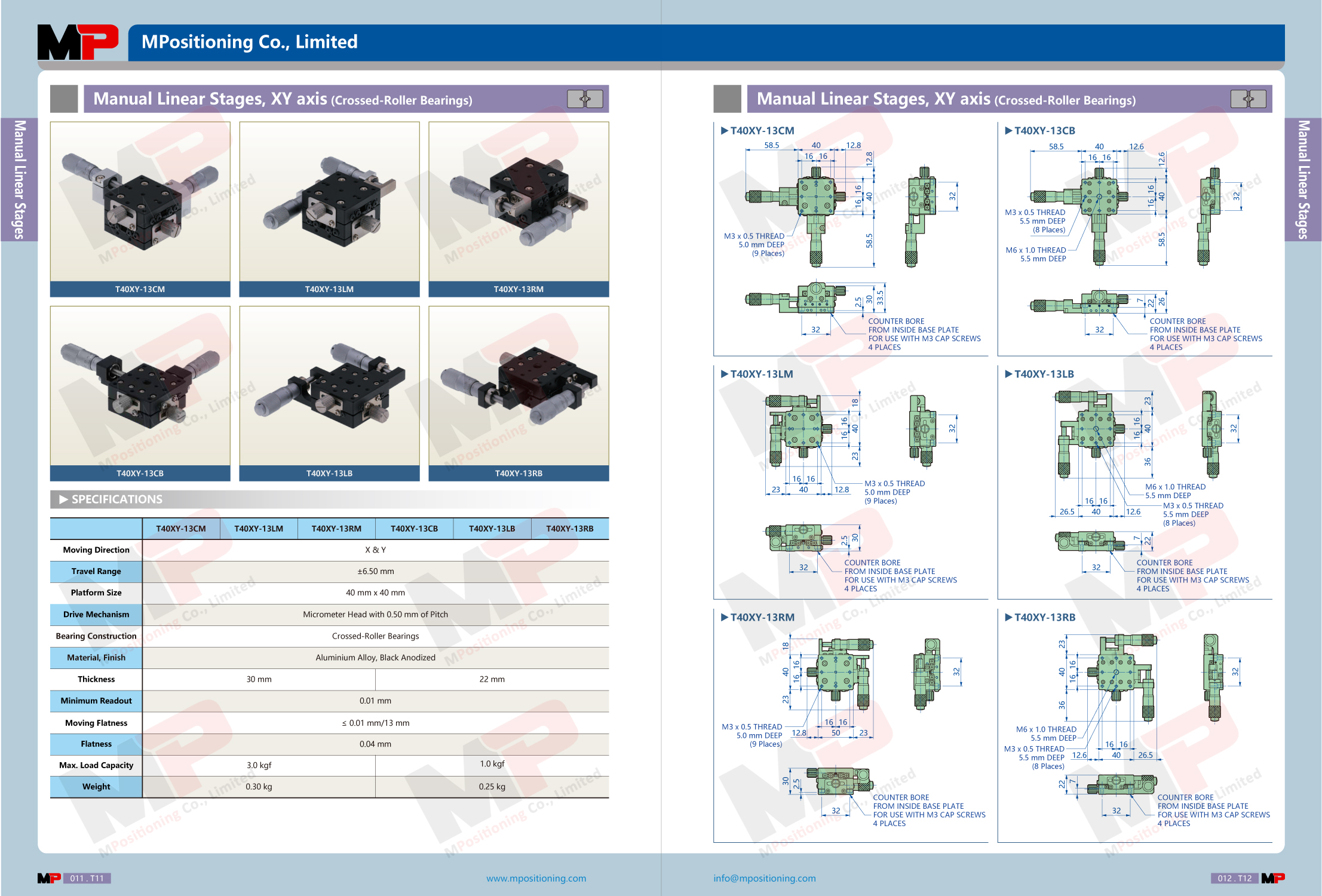

Specifications

Part Number

T40XY-13CM

T40XY-13LM

T40XY-13RM

T40XY-13CB

T40XY-13LB

T40XY-13RB

Enjoy Shipping on Amazon

Buy Now

Buy Now

Buy Now







Moving Direction

X & Y

X & Y

Travel Range

±6.5 mm

Platform Size

40 mm x 40 mm

Drive Mechanism

Micrometer Head with 0.50 mm of Pitch

Bearing Construction

Crossed-Roller Bearings

Material, Finish

Aluminium Alloy, Black Anodized

Thickness

30 mm

22 mm

Minimum Readout

0.01 mm

Moving Flatness

≤ 0.01 mm/13 mm

Flatness

0.04 mm

0.04 mm

Max. Load Capacity

3.0 kgf

1.0 kgf

Weight

0.30 kg

0.25 kg

Specifications
Moving Direction X & Y
Travel Range ± 6.5 mm
Platform Size 40 mm x 40 mm
Drive Mechanism Micrometer Head with 0.50 mm of Pitch, Leftside-Mounted
Bearing Construction Crossed-Roller Bearings
Material, Finish Aluminium Alloy, Black Anodized
Thickness 22 mm
Minimum Readout 0.01 mm
Moving Flatness ≤ 0.01 mm/13 mm
Flatness 0.04 mm
Max. Load Capacity 1.0 kgf
Weight 0.25 kg
