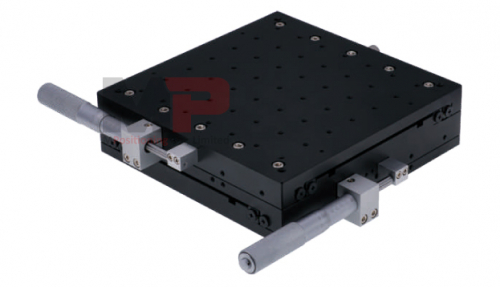

The Precision Compact Manual XY Linear Stage T200XY-50RM is equipped with the Crossed-Roller Bearings and assembled with 3 plates (top, middle and bottom) into one body. The Compact Design means the X and Y axes cannot be disassembled into 2 of Single Axis Linear Stages. The XY Linear Stage T200XY-50R is stacked by 2 units of Single Axis Translation Stage T200X-50R
The large 200 mm x 200 mm mounting platform supports up to 40 kg with a smooth XY-Axis adjustment range of ±25.0 mm. The actuator of Micrometer Head drives in rightside position of the Single-Axis Stage.
Specifications
|
Part Number |
T200XY-50L |
T200XY-50R |
||||
|
Enjoy Shipping on Amazon |
- |
- |
- |
- |
- |
- |
|
Moving Direction |
X |
X & Y |
X & Y |
|||
|
Travel Range |
±25.0 mm |
±25.0 mm |
±25.0 mm |
|||
|
Platform Size |
200 mm x 200 mm |
200 mm x 200 mm |
200 mm x 200 mm |
|||
|
Drive Mechanism |
Micrometer Head with 0.50 mm of Pitch |
|||||
|
Bearing Construction |
Crossed-Roller Bearings |
|||||
|
Material, Finish |
Aluminium Alloy, Black Anodized |
|||||
|
Thickness |
32 mm |
64 mm |
54 mm |
|||
|
Minimum Readout |
0.01 mm |
|||||
|
Moving Flatness |
≤ 0.04 mm/50 mm |
|||||
|
Flatness |
0.05 mm |
0.10 mm |
0.10 mm |
|||
|
Max. Load Capacity |
40.0 kgf |
|||||
|
Weight |
3.80 kg |
7.60 kg |
6.60 kg |
|||
| Moving Direction | X & Y |
| Travel Range | ±25.0 mm |
| Platform Size | 200 mm x 200 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch, Rightside-Mounted |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Thickness | 54 mm |
| Minimum Readout | 0.01 mm |
| Moving Flatness | ≤ 0.04 mm/50 mm |
| Flatness | 0.10 mm |
| Max. Load Capacity | 40.0 kgf |
| Weight | 6.60 kg |
