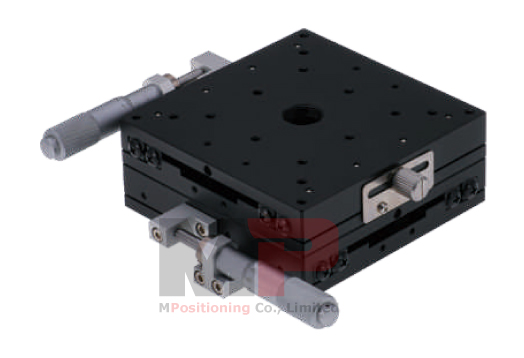

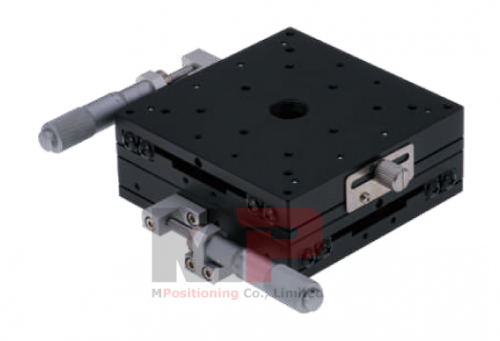

25 mm Travel Manual XY Linear Stage T100XY-25L

Item No.: T100XY-25L
Key Features
- 100 mm x 100 mm Platform Size
- Lockable Design by a Steel Thumbscrew
- Crossed-Roller Bearings for Accurate and Smooth Motion
- 10.0 kgf of Load Capacity and ±12.5 mm of XY-Axis Adjustment
Description Specifications Downloads Contact Us
Description

The Precision Manual XY Linear Stage T100XY-25L is stacked by 2 units of Single-Axis Linear Stage T100X-25L and features Crossed-Roller Bearing Slide Guides. The 100 mm x 100 mm mounting platform supports up to 10.0 kg with a smooth XY-Axis adjustment range of ±12.5 mm. The actuator of Micrometer Head drives in leftside position of the Single-Axis Stage.

Specifications

Part Number

T100X-25C

T100X-25L

T100X-25R

T100XY-25C

T100XY-25L

T100XY-25R

Moving Direction

X

X & Y

Travel Range

±12.5 mm

Platform Size

100 mm x 100 mm

Drive Mechanism

Micrometer Head with 0.50 mm of Pitch

Bearing Construction

Crossed-Roller Bearings

Material, Finish

Aluminium Alloy, Black Anodized

Thickness

20 mm

40 mm

Minimum Readout

0.01 mm

Moving Flatness

≤ 0.02 mm/25 mm

Flatness

0.03 mm

0.06 mm

Max. Load Capacity

10.0 kgf

Weight

0.70 kg

1.40 kg

Specifications
Moving Direction X & Y
Travel Range ± 12.5 mm
Platform Size 100 mm x 100 mm
Drive Mechanism Micrometer Head with 0.50 mm of Pitch, Leftside-Mounted
Bearing Construction Crossed-Roller Bearings
Material, Finish Aluminium Alloy, Black Anodized
Thickness 40 mm
Minimum Readout 0.01 mm
Moving Flatness ≤ 0.02 mm/25 mm
Flatness 0.06 mm
Max. Load Capacity 10.0 kgf
Weight 1.40 kg
