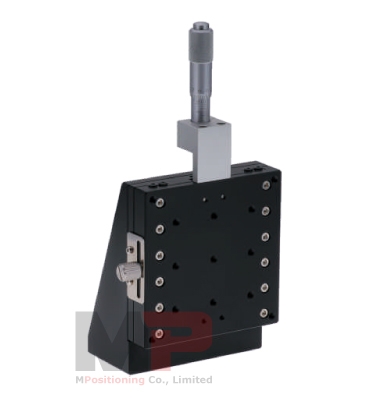

The Vertical Translation Stage T90Z-25C2 is assembled by a Single-Axis Linear Stage T90X-25C2 and 90 Degree Angle Bracket T90. The Vertical Stage is equipped with the Precision Crossed-Roller Bearing Slide Guides. It features 0.01 mm of resolution with the actuator of Micrometer Head, provides ±12.5 mm of vertical height adjustment range and offers 4.0 kgf of maximum load capacity. The platform size is 90 mm x 90 mm with mounting surface in vertically.
This Vertical Stage can also be stacked an XZ or XYZ Positioning Stage with our regular Single-Axis or XY Linear Translation Stage (see reference related products below). The Manual Rotation Stage R90A-L, R90B-L or R90C-L can also be stacked on mounting surface of the Vertical Stage T90Z-25C2 for Multi-Axis Positioning Solutions.
Related Products
Here you will find some of related products, configurable systems and accessories.
|
Item# |
Product Description |
|
Manual Rotation Stage (Standard Type), Support Loading ups to 3.0 kgf |
|
|
Manual Rotation Stage (Inlaid Copper Ring), Support Loading ups to 4.0 kgf |
|
|
R90C-L |
Manual Rotation Stage (Radial Crossed-Roller Bearing), Support Loading ups to 10.0 kgf |
|
±12.5 mm Travel Linear Translation Stage, Rightside-Mounted Micrometer |
|
|
±12.5 mm Travel Linear Translation Stage, Leftside-Mounted Micrometer |
|
|
±12.5 mm Travel Linear Translation Stage, Center-Mounted Micrometer |
|
|
±12.5 mm Travel XY Linear Stage, Rightside-Mounted Micrometer |
|
|
±12.5 mm Travel XY Linear Stage, Leftside-Mounted Micrometer |
|
|
±12.5 mm Travel XY Linear Stage, Center-Mounted Micrometer |
|
|
T90Z-25C2 |
±12.5 mm Travel Vertical Stage, Center-Mounted Micrometer, Locking Screw in Leftside of the stage |
|
T90Z-25C3 |
±12.5 mm Travel Vertical Stage, Center-Mounted Micrometer, Locking Screw in Rightside of the stage |
|
T90Z-25L2 |
±12.5 mm Travel Vertical Stage, Leftside-Mounted Micrometer |
|
T90Z-25R2 |
±12.5 mm Travel Vertical Stage, Rightside-Mounted Micrometer |

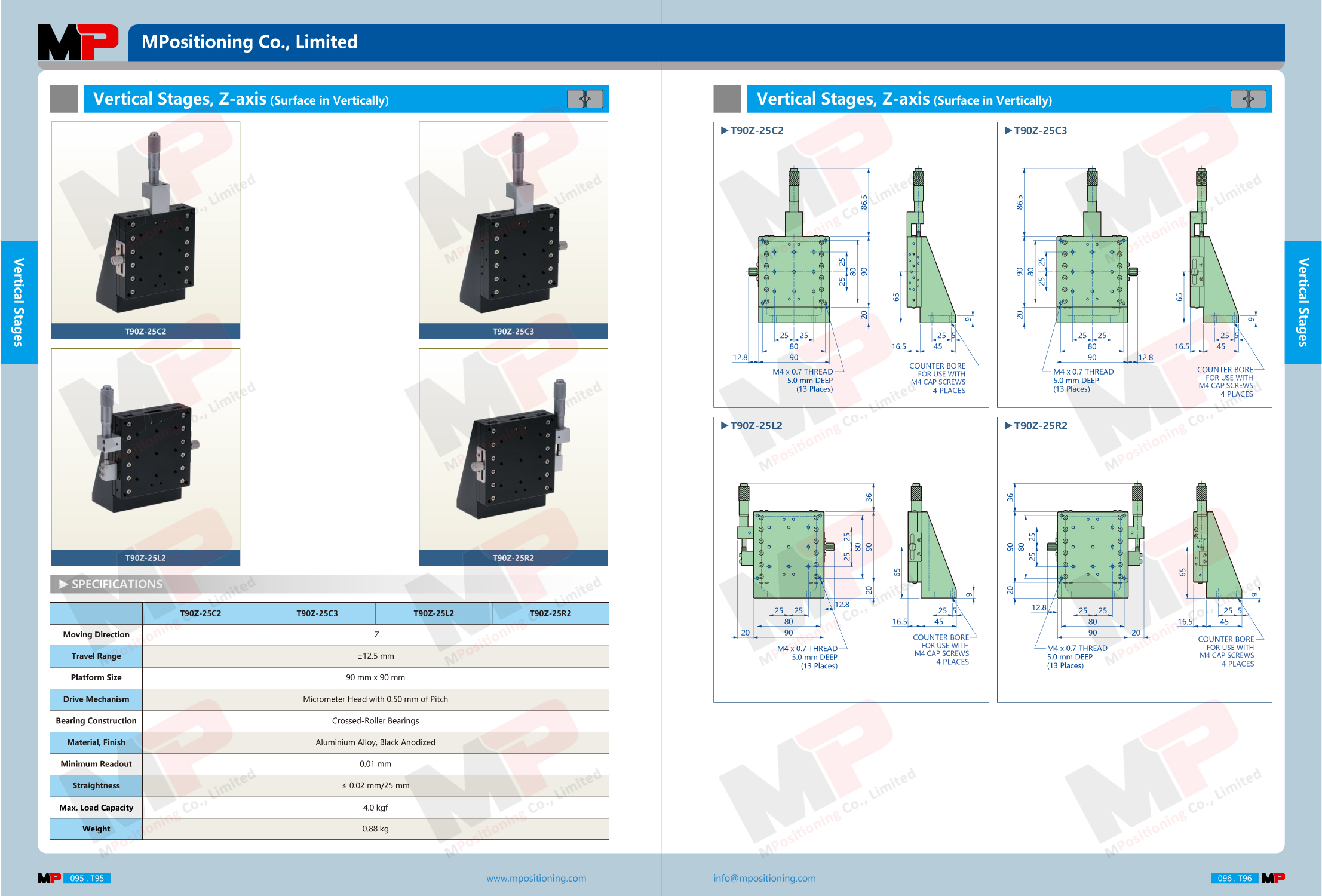

| Moving Direction | Z Axis |
| Travel Range | ±12.5 mm |
| Platform Size | 90 mm x 90 mm |
| Drive Mechanism | Micrometer Head with 0.50 mm of Pitch |
| Bearing Construction | Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Minimum Readout | 0.01 mm |
| Straightness | ≤ 0.02 mm/25 mm |
| Max. Load Capacity | 4.0 kgf |
| Weight | 0.88 kg |
