Specifications
|
Part Number |
PT140XY-60B |
|
Moving Direction |
X & Y |
|
Travel Range |
± 30 mm |
|
Platform Size |
140 mm x 140 mm |
|
Drive Mechanism |
Precision Ball Screw with 1.00 mm of Leading |
|
Bearing Construction |
Precision Crossed-Roller Bearings |
|
Material, Finish |
Aluminium Alloy, Black Anodized |
|
Thickness |
40 mm |
|
Moving Flatness |
≤ 0.04 mm/60 mm |
|
Flatness |
0.06 mm |
|
Max. Load Capacity |
10.0 kgf |
|
Weight |
2.90 kg |

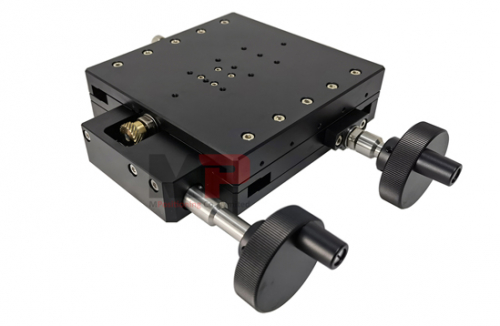

The Precision XY Microscope Stage PT140XY-60B is equipped with the Crossed-Roller Bearing Slide Guides and assembled by top, middle and bottom plates in ONE BODY. The 140 mm x 140 mm mounting platform supports up to 10.0 kg with a smooth XY-Axis adjustment range of ±30 mm. The compact design allows for the minimum 40 mm of thickness. The Drive System will be using 2 of small ball screw with 1 mm of leading. 2 hand wheels of the X and Y axes are designed in one side of the stage, and this individuation design will be helpful for saving the space when it is limited.
All details will be improving the performance of the stage with Good Accurate, Smooth Motion, High Load Capacity and Easy to Operating. This Microscope Stage is ideal for the applications of Microscopy.
| Moving Direction | X & Y |
| Travel Range | ± 30 mm |
| Platform Size | 140 mm x 140 mm |
| Drive Mechanism | Precision Ball Screw with 1.00 mm of Leading |
| Bearing Construction | Precision Crossed-Roller Bearings |
| Material, Finish | Aluminium Alloy, Black Anodized |
| Thickness | 40 mm |
| Moving Flatness | ≤ 0.04 mm/60 mm |
| Flatness | 0.06 mm |
| Max. Load Capacity | 10.0 kgf |
| Weight | 2.90 kg |
