The Motorized Linear Stage from MPositioning ideal for the industrial and scientific applications in a vast range of positioning solutions, including research and academic, photonics and optics, semiconductor manufacturing and testing measurement.

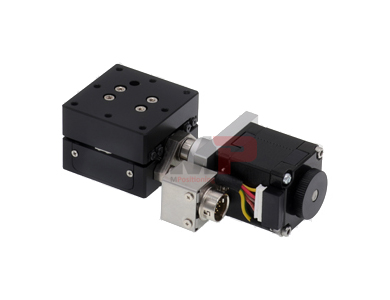

The Single-Axis Translation Stage MT40X-15 is equipped with the precision Crossed-Roller Bearings and driving by the Ball Screw with 0.50 mm of pitch. The minimum 40 mm x 40 mm mounting platform supports up to 5 kgf with 15 mm of travel range. This Motorized Translation Stage is available for the multi-axis configurations in Z-, XZ-, XY- and XYZ-Axis Translations.
For the Multi-Axis configurations,
The XY-Axis Linear Stage MT40XY-15 is stacked by 2 units of Single-Axis Linear Stage MT40X-15, and the Z-Axis Vertical Stage MT40Z-15 is assembled by the 90 Degrees Angle Bracket BR40-15B. The Motorized XYZ Translation Stage MT40XYZ-15 is built by the MT40XY-15 and MT40Z-15.
The strokes of 15 mm, 20 mm and 30 mm are available. Please contact us when you need the .STEP 3D model.
Specifications
|
Product Name |
Motorized Linear Translation Stage |
Resolution |
5 μm |
|
Drive Mechanism |
Ball Screw with 0.5 mm of Pitch |
Sensors |
Limit Switch, Home |
|
Positioning Accuracy |
15 μm |
Material |
Aluminium Alloy |
|
Load Capacity |
3.0 ~ 5.0 (kgf) |
Finish |
Black Anodized |
|
Motor |
2-Phases Stepper Motor (Options: 5-Phases Stepper Motor or AC Servo Motor) |
||
|
Bearing Construction |
Double-Row, Crossed-Roller Bearings |
||
|
Available Multi-Axis Configurations |
Single-Axis, Z-Axis, XY-Axis, XZ-Axis and XYZ-Axis |
||
|
Optional Accessories |
90 degrees Angle Bracket: BR40-15B; 12-Pin Stepper Motor Cable: CB12-2M, CB12-4M |
||
Motorized Single-Axis, XY and XYZ-Axis Translation Stages, Z-Axis Vertical Stage
|
Item Number |
MT40X-15 |
MT40XY-15 |
MT40Z-15 |
MT40XYZ-15 |
|
Platform Size |
40 mm x 40 mm |
40 mm x 40 mm |
||
|
Moving Direction |
X |
XY |
Z |
XYZ |
|
Stroke |
15 mm |
15 mm |
||
|
Weight |
0.30 kg |
0.60 kg |
0.40 kg |
1.00 kg |
|
Max. Load Capacity |
5 kgf |
3 kgf |
||
|
Max. Velocity |
10 mm/sec |
10 mm/sec |
||
|
Unidirectional Repeatability |
≤ 15 μm |
≤ 15 μm |
||
|
Bidirectional Repeatability |
± 1 μm |
± 1 μm |
||
|
Backlash |
≤ 3 μm |
≤ 3 μm |
||
|
Flatness |
≤ 30 μm |
- |
- |
- |
|
Straightness |
≤ 3 μm |
≤ 3 μm |
||
