Precision Motorized Linear Stages PLS60X-15L Providing X, Z, XY or XYZ Translation

Item No.: PLS60X-15L
- 15 mm Travel, 10 kgf of Load Capacity
- Ball Screw Driving, Provides Backlash Free
- Available for the assemblies in XY, XZ and XYZ axes Translation Stages
- Gothic Arch Ball Bearing, High Rigidity, Machined Directly into the Stainless Steel Body
Description Downloads Contact Us
Description

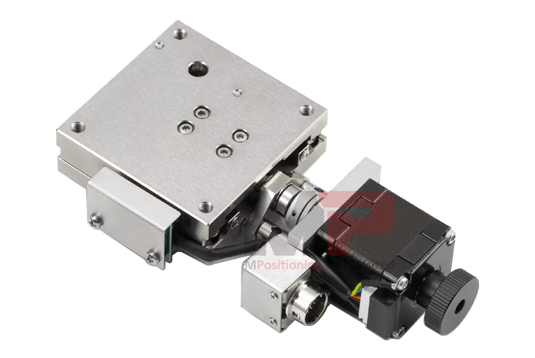

The precision Motorized Linear Translation Stage PLS60X-15L feature the gothic-arch ball bearings machined directly into the stainless steel body. The 60 mm x 60 mm mounting platform supports up to 10 kgf with 15 mm of travel range. The drive mechanism is precision ball screw with 1 mm of pitch.

They are available in multi-axis (XZ-, XY- or XYZ-Axis) configurations. The 90 degrees Angle Bracket can hold the Single-Axis Translation Stage for the Z-Axis height movement. We also offer other 2 types of Motorized Vertical Stage provide the horizontal mounting platform, i.e. PLS40Z-6 and PLS60Z-8.

Specifications

Product Name

Motorized Linear Translation Stage

Resolution

5 μm

Drive Mechanism

Ball Screw with 1 mm of Pitch

Sensors

Limit Switch, Home

Positioning Accuracy

15 μm

Material

Stainless Steel (SUS440C)

Load Capacity

3.0 ~ 10.0 (kgf)

Finish

Electroless Nickel Plating

Motor

2-Phases Stepper Motor (Options: 5-Phases Stepper Motor or AC Servo Motor)

Bearing Construction

Double-Row, Gothic-Arch Ball Bearing Slides Machined Directly into the Stainless Steel Body

Available Multi-Axis Configurations

Single-Axis, Z-Axis, XY-Axis, XZ-Axis and XYZ-Axis

Optional Accessories

90 degrees Angle Bracket: BR60-20B; 12-Pin Stepper Motor Cable: CB12-2M, CB12-4M

Motorized Single-Axis and XY-Axis Linear Stages, Z-Axis Vertical Stage, 60 mm x 60 mm Platform Size

Item Number

PLS60X-15L

PLS60X-15R

PLS60XY-15L

PLS60XY-15R

PLZ60Z-8

Platform Size

60 mm x 60 mm

60 mm x 60 mm

60 mm x 60 mm

Moving Direction

X

XY

Z

Stroke

15 mm

15 mm

8 mm

Weight

0.56 kg

1.12 kg

0.95 kg

Max. Load Capacity

10 kgf

10 kgf

4 kgf

Max. Velocity

10 mm/sec

10 mm/sec

10 mm/sec

Unidirectional Repeatability

≤ 15 μm

≤ 15 μm

≤ 30 μm

Bidirectional Repeatability

± 1 μm

± 1 μm

± 5 μm

Backlash

≤ 3 μm

≤ 3 μm

-

Flatness

≤ 20 μm

≤ 20 μm

≤ 50 μm

Straightness

≤ 3 μm

≤ 3 μm

-

Position of Switch & Connector

Left

Right

Left

Right

-
