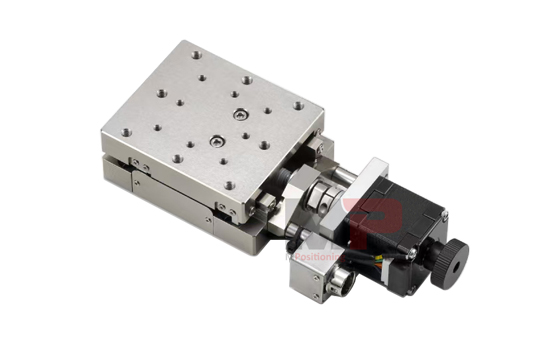

Precision Motorized Translation Stage 30 mm Travel PH60X-30

Item No.: PH60X-30
- 30 mm Travel, 10 kgf of Load Capacity
- Ball Screw Driving, Provides Backlash Free
- Available for the assemblies in XY, XZ and XYZ axes Translation Stages
- Gothic Arch Ball Bearing, High Rigidity, Machined Directly into the Stainless Steel Body
Description Downloads Contact Us
Description

The Motorized Translation Stage from MPositioning ideal for the industrial and scientific applications in a vast range of positioning solutions, including research and academic, photonics and optics, semiconductor manufacturing and testing measurement.

The Single-Axis Translation Stage PH60X-30 features the gothic-arch ball bearings machined directly into the stainless steel body. The 60 mm x 70 mm mounting platform supports up to 10 kgf with 30 mm of travel range. The drive mechanism is precision ball screw with 1 mm of pitch. It is available for the assemblies in Z-Axis, XY-Axis and XYZ-Axis Stages according to your demands.

For the Multi-Axis configurations,
    The XY-Axis Linear Stage PH60XY-30 is stacked by 2 units of single-axis linear stage PH60X-30, and the Z-Axis Vertical Stage PH60Z-30 is assembled by the 90 Degrees Angle Bracket BR60-30W. The Motorized XYZ Translation Stage PH60XYZ-30 is built by the PH60XY-30 and PH60Z-30.

Specifications

Product Name

Motorized Linear Translation Stage

Resolution

5 μm

Drive Mechanism

Ball Screw with 1 mm of Pitch

Sensors

Limit Switch, Home

Positioning Accuracy

15 μm

Material

Stainless Steel (SUS440C)

Load Capacity

5.0 ~ 10.0 (kgf)

Finish

Electroless Nickel Plating

Motor

2-Phases Stepper Motor (Options: 5-Phases Stepper Motor or AC Servo Motor)

Bearing Construction

Double-Row, Gothic-Arch Ball Bearing Slides Machined Directly into the Stainless Steel Body

Available Multi-Axis Configurations

Single-Axis, Z-Axis, XY-Axis, XZ-Axis and XYZ-Axis

Optional Accessories

90 degrees Angle Bracket: BR60-30W; 12-Pin Stepper Motor Cable: CB12-2M, CB12-4M

Motorized Single-Axis, XY and XYZ-Axis Translation Stages, Z-Axis Vertical Stage, 60 mm x 70 mm Platform Size

Item Number

PH60X-30

PH60XY-30

PH60Z-30

PH60XYZ-30

Platform Size

60 mm x 70 mm

60 mm x 70 mm

Moving Direction

X

XY

Z

XYZ

Stroke

30 mm

30 mm

Weight

0.87 kg

1.74 kg

1.17 kg

2.91 kg

Max. Load Capacity

10 kgf

5 kgf

Max. Velocity

10 mm/sec

10 mm/sec

Unidirectional Repeatability

≤ 15 μm

≤ 15 μm

Bidirectional Repeatability

± 1 μm

± 1 μm

Backlash

≤ 3 μm

≤ 3 μm

Flatness

≤ 15 μm

-

-

-

Straightness

≤ 3 μm

≤ 3 μm
