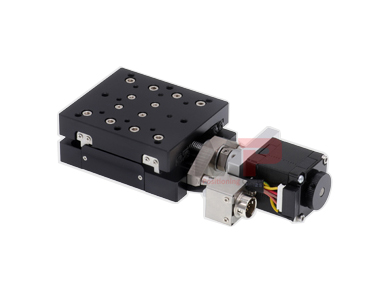

Precision Motorized Linear Stage 30 mm Travel MT60X-30

Item No.: MT60X-30
- Support 15, 20 and 30 mm of Travel Ranges
- Ball Screw Driving, Provides Minimum Backlash
- Aluminum Material with Black Anodized Finish
- Crossed-Roller Bearing for a Higher Accuracy
- Multi-Axis Config. in Z, XY, XZ and XYZ axes Translations
Description Downloads Contact Us
Description

The Motorized Linear Stage from MPositioning ideal for the industrial and scientific applications in a vast range of positioning solutions, including research and academic, photonics and optics, semiconductor manufacturing and testing measurement.

The Single-Axis Translation Stage MT60X-30 is equipped with the precision Crossed-Roller Bearings and driving by the Ball Screw with 0.50 mm of pitch. The minimum 60 mm x 70 mm mounting platform supports up to 5 kgf with 30 mm of travel range. This Motorized Translation Stage is available for the multi-axis configurations in Z-, XZ-, XY- and XYZ-Axis Translations.

For the Multi-Axis configurations,
    The XY-Axis Linear Stage MT60XY-30 is stacked by 2 units of Single-Axis Linear Stage MT60X-30, and the Z-Axis Vertical Stage MT60Z-30 is assembled by the 90 Degrees Angle Bracket BR60-30B. The Motorized XYZ Translation Stage MT60XYZ-30 is built by the MT60XY-30 and MT60Z-30.

The strokes of 15 mm, 20 mm and 30 mm are available. Please contact us when you need the .STEP 3D model.

Specifications

Product Name

Motorized Linear Translation Stage

Resolution

5 μm

Drive Mechanism

Ball Screw with 0.5 mm of Pitch

Sensors

Limit Switch, Home

Positioning Accuracy

15 μm

Material

Aluminium Alloy

Load Capacity

3.0 ~ 5.0 (kgf)

Finish

Black Anodized

Motor

2-Phases Stepper Motor (Options: 5-Phases Stepper Motor or AC Servo Motor)

Bearing Construction

Double-Row, Crossed-Roller Bearings

Available Multi-Axis Configurations

Single-Axis, Z-Axis, XY-Axis, XZ-Axis and XYZ-Axis

Optional Accessories

90 degrees Angle Bracket: BR60-30B; 12-Pin Stepper Motor Cable: CB12-2M, CB12-4M

Motorized Single-Axis, XY and XYZ-Axis Translation Stages, Z-Axis Vertical Stage

Item Number

MT60X-30

MT60XY-30

MT60Z-30

MT60XYZ-30

Platform Size

60 mm x 70 mm

60 mm x 70 mm

Moving Direction

X

XY

Z

XYZ

Stroke

30 mm

30 mm

Weight

0.50 kg

1.00 kg

0.95 kg

2.00 kg

Max. Load Capacity

5 kgf

3 kgf

Max. Velocity

10 mm/sec

10 mm/sec

Unidirectional Repeatability

≤ 15 μm

≤ 15 μm

Bidirectional Repeatability

± 1 μm

± 1 μm

Backlash

≤ 3 μm

≤ 3 μm

Flatness

≤ 30 μm

-

-

-

Straightness

≤ 3 μm

≤ 3 μm

Accessories
