The Motorized Translation Stage from MPositioning ideal for the industrial and scientific applications in a vast range of positioning solutions, including research and academic, photonics and optics, semiconductor manufacturing and testing measurement.

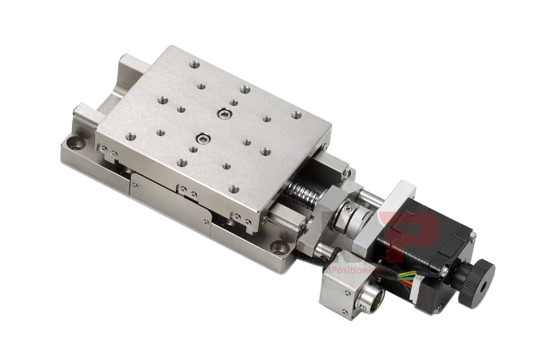

The Single-Axis Translation Stage PH60X-50 features the gothic-arch ball bearings machined directly into the stainless steel body. The 60 mm x 80 mm mounting platform supports up to 10 kgf with 50 mm of travel range. The drive mechanism is precision ball screw with 1 mm of pitch. It is available for the assemblies in Z-Axis, XY-Axis and XYZ-Axis Stages according to your demands.
For the Multi-Axis configurations,
The XY-Axis Linear Stage PH60XY-50 is stacked by 2 units of single-axis linear stage PH60X-50, and the Z-Axis Vertical Stage PH60Z-50 is assembled by the 90 Degrees Angle Bracket BR60-50W. The Motorized XYZ Translation Stage PH60XYZ-50 is built by the PH60XY-50 and PH60Z-50.
Specifications
Product Name |
Motorized Linear Translation Stage |
Resolution |
5 μm |
Drive Mechanism |
Ball Screw with 1 mm of Pitch |
Sensors |
Limit Switch, Home |
Positioning Accuracy |
15 μm |
Material |
Stainless Steel (SUS440C) |
Load Capacity |
5.0 ~ 10.0 (kgf) |
Finish |
Electroless Nickel Plating |
Motor |
2-Phases Stepper Motor (Options: 5-Phases Stepper Motor or AC Servo Motor) |
||
Bearing Construction |
Double-Row, Gothic-Arch Ball Bearing Slides Machined Directly into the Stainless Steel Body |
||
Available Multi-Axis Configurations |
Single-Axis, Z-Axis, XY-Axis, XZ-Axis and XYZ-Axis |
||
Optional Accessories |
90 degrees Angle Bracket: BR60-50W; 12-Pin Stepper Motor Cable: CB12-2M, CB12-4M |
Motorized Single-Axis, XY and XYZ-Axis Translation Stages, Z-Axis Vertical Stage, 60 mm x 80 mm Platform Size
Item Number |
PH60X-50 |
PH60XY-50 |
PH60Z-50 |
PH60XYZ-50 |
Platform Size |
60 mm x 80 mm |
60 mm x 80 mm |
||
Moving Direction |
X |
XY |
Z |
XYZ |
Stroke |
50 mm |
50 mm |
||
Weight |
1.20 kg |
2.40 kg |
1.50 kg |
3.90 kg |
Max. Load Capacity |
10 kgf |
5 kgf |
||
Max. Velocity |
10 mm/sec |
10 mm/sec |
||
Unidirectional Repeatability |
≤ 15 μm |
≤ 15 μm |
||
Bidirectional Repeatability |
± 1 μm |
± 1 μm |
||
Backlash |
≤ 3 μm |
≤ 3 μm |
||
Flatness |
≤ 15 μm |
- |
- |
- |
Straightness |
≤ 3 μm |
≤ 3 μm |
